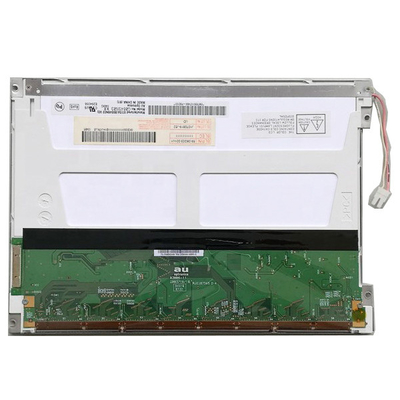

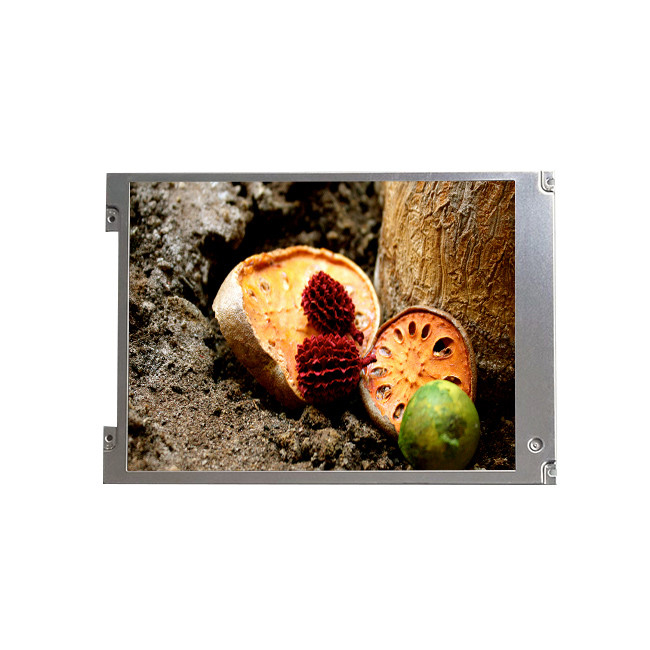

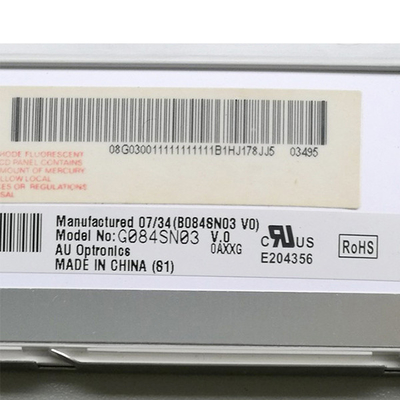

G084SN03 V0 New Original 8.4 inch SVGA 800(RGB)×600 TFT LCD Display for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G084SN03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G084SN03 V0 | Screen Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 [SVGA] 119PPI | Active Area: | 170.4(H)×127.8(V) Mm |
| Outline Dim.: | 203(H)×142.5(V) Mm | Bezel Area: | 173.8(H)×131.2(V) Mm |
| Weight: | 215±10g | Designed For: | Industrial |
Product Description
G084SN03 V0 New Original 8.4 inch SVGA 800(RGB)×600 TFT LCD Display for AUO
Product details :
| AUO LCD SCREEN G084SN03 V0 | |
| Manufacturer | AUO |
| Model Name | G084SN03 V0 |
| Diagonal Size | 8.4 inches |
| Type | a-Si TFT-LCD, LCD module |
| Pixel Number | 800(RGB)*600 SVGA 119PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 170.4(H)*127.8(V) mm |
| physical dimension | 203(H)*142.5(V) mm |
| Open area | 173.8(H)*131.2(V) mm |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (transmission) |
| Response Time | 10/25 (Typ.)(Tr/Td) ms |
| Viewing Angle | 65/65/65/45 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white display, transmissive |
| Support Color | 262K, 48% NTSC |
| Light Source | CCFL [1 pcs], 20K hours, no driver |
| Frame Rate | 60Hz |
| Interface Type | 20 pins LVDS (1 ch, 6-bit), connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Working temperature: 0 ~ 50 °C; Storage temperature: -20 ~ 60 °C |
Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 24 hours.
3. Purchase on the same day, there will be a small gift!
4. The customer installs independently and provides installation instructions.
5. Our packaging is professionally customized and very safe! Each package will have a fragile label
6. Product grade provides A grade (perfect) and B grade (defective, imperfect) Meet various customer needs
7. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
Payment:
1)Credit card, bank transfer , western union , T/T,are accepted.
2) If any problem of payment,you can contact with us.
Shipping and Package :
Shipment:
1)Worldwide shipping. Any delivery way you want to choose,please contact us.
2) Item will be shipped within 1-3days after confirmed full payment. Please inform us the price you want to mark on the invoice.
3)Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended,especially Russian buyers.
4) We are not responsible for the additional taxes or customs duty. We sincerely hope buyer will not raise and refunds or leave neutral and negative feedback based on the reason.
5) Delivery time is approx:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Air Mail or Parcel:10-30 working days
If you urgently need the item, please choose DHL.
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 2~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
Return and Refund:
(1) Please notify us ASAP if the item you received is defective.
(2) All returns must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, we should be provide the tracking number and returning reason.
FAQ:
Q: Can you tested the G084SN03 V0 before shipping ?
A: Of course , our lcd panel G084SN03 V0 was Strictly tested before shipping.
Q: How to order AUO G084SN03 V0 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd G084SN03 V0 ?
A: 90 days .
Q: What happen if the lcd panel G084SN03 V0 I received can't work ?
A: AUO G084SN03 V0 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
