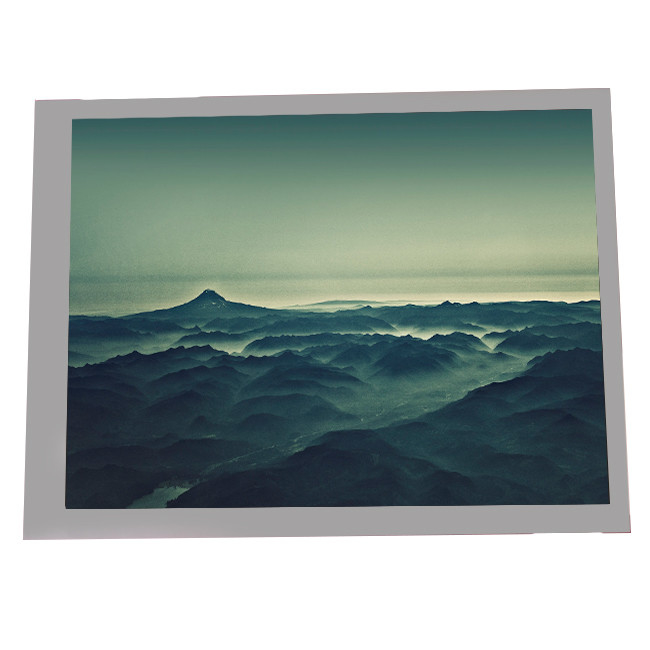

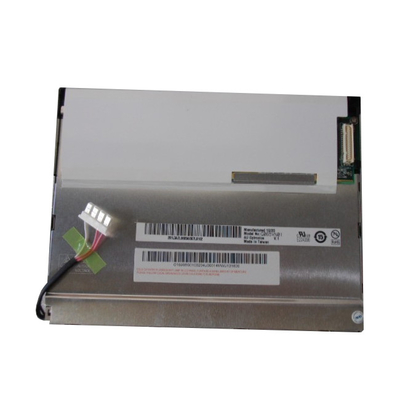

FOR AUO G065VN01 V1 6.5 inch LCD screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G065VN01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 868 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G065VN01 V1 | Screen Size: | 6.5 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 (VGA) 122PPI | Active Area(mm): | 132.48 × 99.36 (H×V) |
| Outline(mm): | 153 × 118 × 11.2 (H×V×D) | Bezel Area(mm): | 135.9 × 102.8 (H×V) |
| Mass: | 200g (Typ.) | Application: | Industrial |
Product Description
FOR AUO G065VN01 V1 6.5 inch LCD screen display
Product details :
| AUO LCD SCREEN G065VN01 V1 | |
| Manufacturer | AUO |
| Model Name | G065VN01 V1 |
| Diagonal Size | 6.5 inches |
| Type | LCM, a-Si TFT-LCD |
| Pixel Number | 640(RGB)*480 VGA 122PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 132.48(H)*99.36(V) mm |
| Viewable area | 153(H)*118(V) *11.2(T) mm |
| physical dimension | 135.9(H)*102.8(V) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | 15/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white display, transmissive |
| Support Color | 262K, 55% NTSC |
| Light Source | CCFL [2 pcs], 50K hours, no driver |
| Frame Rate | 60Hz |
| Screen weight | 200g (Typ.) |

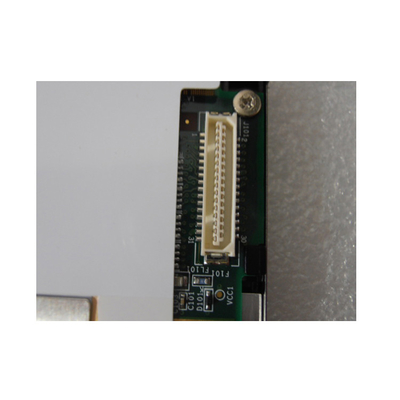

| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C |
About the product:
*Our main products include: 1.5-88.0 inch liquid crystal display(LCD)and touch screens, various handheld device LCDs and touch screens, various industrial LCD screens,medical equipment LCD screens,GPS and car LCD screens,high voltage strips,power supply boards, Lights, encoders, etc. Many original LCD monitors are discontinued models and second-hand (A+ level). If you only need 100% new screens, please confirm with us before purchasing.
*Please compare your original product with the photos we provide to make sure you are buying the correct parts. If you are not sure whether the match is accurate, please contact our customer service directly, our customer service will give the most accurate answer within 24 hours.
*Does not include installation instructions. Professional installation is recommended. Please read the instructions carefully.
*If you have any questions or clarifications about the items, please feel free to ask before buying.
Useful news:
1. The product will go through rigorous testing again before shipment to ensure that it will be shipped under 100% usage.
2. We will tailor the safest and most secure package packaging method according to the material and shape of the product to ensure that the product reaches the customer intact
3. Provide a variety of logistics channels, and choose the fastest and safest delivery method according to customer needs.
4. If you are not sure whether your product exactly matches our product, please contact our customer service directly, and the customer service will give an accurate reply within 24
5. If you can't find the product you want to buy, please contact our customer service directly, and send the product model and picture you need to customer service, and the customer service will reply you within 24 hours.
6. Support large-volume and long-term ordering, and our products have preferential prices for bulk ordering.
7. If you need more information about the product, please contact our customer service directly.
Shipping and Package :
Shippment:
About transportation:
*We will ship the goods within 1-2 working days after you make the payment. We only ship according to the delivery address. If you want to change the delivery address, please contact me in advance.
*We use the fastest shipping service based on the shipping cost you pay. The transit time is usually 7-30 days and may vary by country/region. Delivery to most European, North American and Asian countries within 7-15 days. Up to 30-45 days in other countries. Provide express service (DHL/FEDEX/TNT/ARAMEX/UPS)
The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
FAQ:
Q: Can you tested the G065VN01 V1 before shipping ?
A: Of course , our lcd panel G065VN01 V1 was Strictly tested before shipping.
Q: How to order AUO G065VN01 V1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel G065VN01 V1 I received can't work ?
A: AUO G065VN01 V1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
