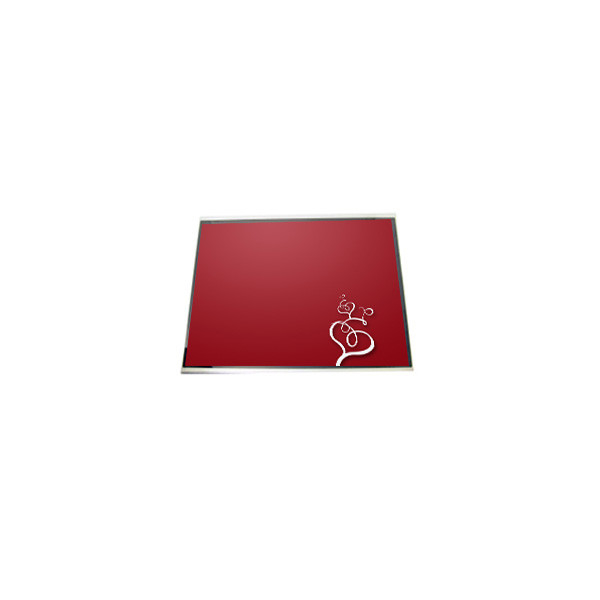

5.0 inch 720*1280 HSD050FHW3-D00 tft lcd panel for Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD050FHW3-D00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 888 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD050FHW3-D00 | Screen Size: | 5.0" |
|---|---|---|---|
| Resolution: | 720(RGB)×1280, WXGA 294PPI | Active Area: | 62.1(W)×110.4(H) Mm |
| Outline Size: | 64.5(W)×117.59(H)×0.4(D) Mm | Surface: | Without Polarizer |
| Display Mode: | IPS Pro, Normally Black, Transmissive | Application: | Mobile Phone |
| Glass Depth: | 0.20+0.20 Mm | Display Colors: | 16.7M 70%NTSC |
Product Description
5.0 inch 720*1280 HSD050FHW3-D00 tft lcd panel for Phone
Product details :
| Brand | HannStar |
| Model P/N | HSD050FHW3-D00 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×110.4(H) mm |
| Bezel Opening | - |
| Outline Size | 64.5(W)×117.59(H)×0.4(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Glass Depth | 0.20+0.20 mm |
| Transmissivity | 3.4% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8394-A01, HX8394-B, HX8394-D, NT35520, NT35521, OTM1283A, OTM1288A, OTM1284A |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
Product Details:
- Conditions: Before sending the project, We will conduct multiple tests perfect work, the quality is 100% guaranteed.
- If you’re not sure if it’s the right item you need, or you need more quantity . Please contact me before ordering.
- Original LCD Screen and tested before sending.
Shipping and Package :
Shippment:
Usually we will prepare and ship your goods within 1 working day.
Pls check if your item is in good condition upon receipt of it.
Delivery time:
----Via Express: Generally 7-10 working days.
----Via Air Mail: Generally 30-50working days.
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ:
Q: Can you tested the HSD050FHW3-D00 before shipping ?
A: Of course , our lcd panel HSD050FHW3-D00 was Strictly tested before shipping.
Q: How to order HSD050FHW3-D00 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel HSD050FHW3-D00 received can't work ?
A:HSD050FHW3-D00 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
