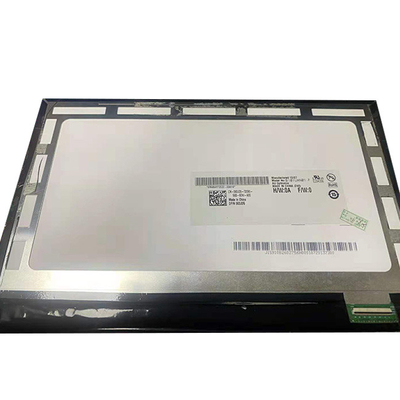

AUO B101UAN01.7 HW0A 10.1 inch 1920(RGB)×1200 tft lcd panel display 10.1 inch lcd module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101UAN01.7 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 888 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B101UAN01.7 HW0A (AUO17D8) | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Active Area: | 216.81(H)×135.5(V) Mm | Outline Dim.: | 227.72(H)×147.8(V) ×5.35(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 140g (Max.) | Application: | Pad & Tablet / Industrial |
Product Description
AUO B101UAN01.7 HW0A 10.1 inch 1920(RGB)×1200 tft lcd panel display 10.1 inch lcd module
Product details :
| AUO LCD SCREEN B101UAN01.7 HW0A (AUO17D8) | |
| Manufacturer | AUO |
| Model Name | B101UAN01.7 HW0A (AUO17D8) |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCD module |
| Pixel Number | 1920(RGB)*1200, WUXGA, 224PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 216.81(W)*135.5(H) mm |
| physical dimension | 227.72(W)*147.8(H) *5.35(D) mm |
| Surface | Mirror (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | MVA, normally black display, transmissive |
| Support Color | 16.7M, 50% NTSC |
| Light Source | WLED, 12K hours, with LED driver |
| Weight | 140g (Max.) |
| Frame Rate | 60Hz |
| Interface Type | MIPI (4 data lanes), 34 pins, connector |
| Power Supply | 3.3V (Typ.) |
| Environment | 0 ~ 50 °C; Storage: -20 ~ 60 °C |
