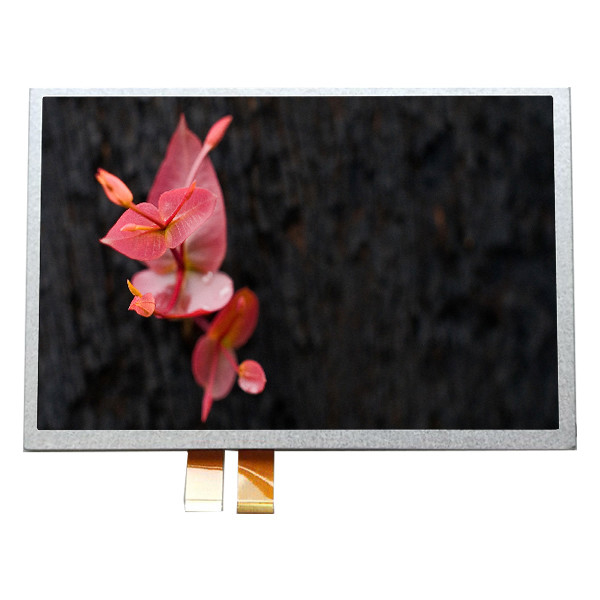

A101VW01 V3 NEW and Original 800×480 10.1 inch LCD Display Module Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |

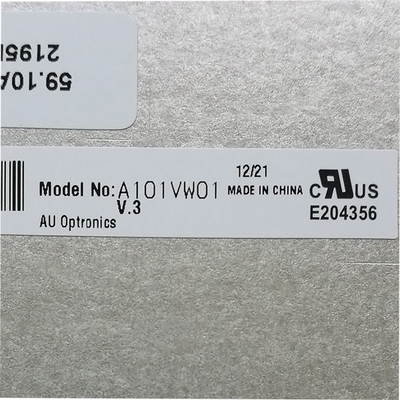

| Model Number: | A101VW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 888 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A101VW01 V3 | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Active Area(mm): | 219.6 × 131.76 (H×V) | Outline(mm): | 235 × 145.9 (H×V×D) |
| Bezel Area(mm): | 221.6 × 133.76 (H×V) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Mass: | 315g | Application: | Industrial / Digital Photo Frame / Portable DVD Player |
Product Description
A101VW01 V3 NEW and Original 800×480 10.1 inch LCD Display Module Panel
Product details :
| AUO LCD SCREEN A101VW01 V3 | |
| Manufacturer | AUO |
| Model Name | A101VW01 V3 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)×480 WVGA 92PP |
| Configuration | RGB Vertical Stripe |
| Display size | 219.6(Horizontal)×131.76(Vertical) mm |
| physical dimension | 235(Horizontal)×145.9(Vertical) mm |
| Visual size | 221.6(Horizontal)×133.76(Vertical)mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) |
| Operating Mode | TN, normally white display, transmissive |
| Support Color | 262K, 48% NTSC |
| Light Source | WLED [3S11P], 20K hours, no driver |
| Weight | 315g |
| Designed For | Designed For |
| Frame Rate | 60Hz |

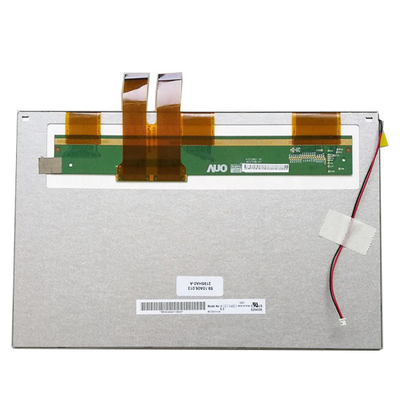

| Interface Type | 60 pins Parallel RGB (1 ch, 6-bit), FPC |
| Power Supply | 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | -10 ~ 60 °C; Storage temperature: -20 ~ 70 °C |
Thank you for choosing us. We will do our best to support you.
100% Tested Before Shipping.
QUALITY IS 100% GURANTEED, IF YOU NEED LCDS IN BIG QTY, PLS CONTACT US FOR DISCOUNT.
Shipping and Package :
Shipping:
1, Pls make sure the model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
5, LCD will be sent by EMS/DHL/UPS/ according to the place or customer choice.
EMS takes around 10-15 business days to arrive.
DHL/UPS take around 3-5 business days to arrive.
Russian customer attention: We can only send by EMS to Russia, EMS usually takes more days to arrive, so your patience is really appreciated.
Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
FAQ:
Q: Can You declare my order of A101VW01 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of A101VW01 V3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of A101VW01 V3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of A101VW01 V3 ?
A: The order will be shipped within 2-3 working days after received your payment.
