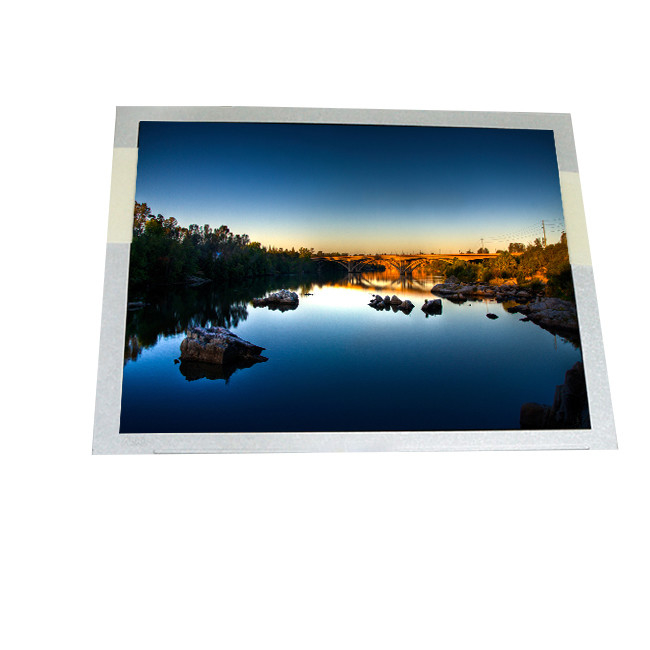

8.0 inch 800*600 resolution IPS TFT Lcd screen A080STN01.0 Display Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A080STN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 888 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A080STN01.0 | Screen Size: | 8.0 Inch |
|---|---|---|---|
| Active Area: | 162(W)×121.5(H) Mm | Outline Size: | 183(W)×141(H) ×5.2(D) Mm |
| Bezel Area: | 163.8(W)×123.3(H) Mm | Display Colors: | 16.2M 50% NTSC |
| Weight: | 225±10g | Application: | Industrial |
Product Description
8.0 inch 800*600 resolution IPS TFT Lcd screen A080STN01.0 Display Modules
Product details :
Manufacturer:AUO
Model Name:A080STN01.0
Screen Size:8.0 inches
Screen type:LCM, a-Si TFT-LCD
Resolution:800*600(RGB) [SVGA] 125PPI
Pixel configuration:RGB horizontal bar
Display size:162 * 121.5 mm (H*V)
physical dimension:183 * 141 * 5.2 mm (H*V*D)
Visual size:163.8 * 123.3 mm (H*V)
Surface treatment:Matte, Hard coating (3H)
Brightness (cd/m²):250 (Typ.)
Contrast:500: 1 (Typ.) [Transmission]
Best angle:6 o'clock
Optical mode:TN, normally white display, transmissive
Viewing angle:70/70/60/65 (Typ.)(CR≥10)
responding speed:12/18 (Typ.)(Tr/Td) ms
Number of colors:16.2M, 50% NTSC
Backlight type:3S6P WLED, 10K hours, no driver
Screen weight:225±10g
Refresh rate:60Hz
Touch function:No touch

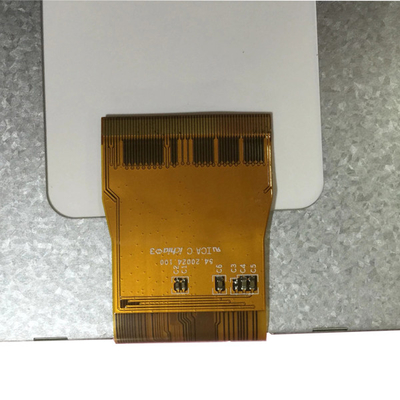

signal system:TTL (1 ch, 8-bit) + SPI, FPC, 60 pins
Supply voltage:3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL)
Maximum rating:Storage temperature: -30 ~ 70 °C Working temperature: -10 ~ 60 °C
Useful news:
All products are gone through strict test before shipment.All photos displayed are 100% real and for reference only.Please allow possible slight differences due to technical improvement and variance.Your order is recognized as you are with full acknowledgement of product specs and respective policies.Our customer service is ready t help you anytime.Aiming to create a pleasant shopping experience for you,we are committed to providing top quality and great service all the time.
Shipping and Package :
Payment & Shipping:
1. Payment is safe and easy, you can pay me online use credit card (VISA or Mastercard)..
2. We can ship items to all over the world.and we had been shipped to many
countries eg: Japan, Thailand, Russia, Ukraine, the United Kingdom, Brazil.
3. Freight fee is cheap, we can ship to you by DHL, UPS, TNT, EMS, China Post Air Mail.
Tariffs and fees:
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14
Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
Return Policy:
Our Guarantee
You Satisfaction is our # 1 Goal!
100% satisfaction guarantee!
It is our commitment to make sure you are 100% satisfied with you purchase
Nont: shiping by China air mail very solw. If you need shippin the fast HongKong Air mail, only add a few cost :-)
or shipping by DHL / fedex / Ems ..
Thank you very much for your continued support of our stores! We will work harder to provide a good service to every customer. Thank you!
FAQ:
Q: How can I trace my order of A080STN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of A080STN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of A080STN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
