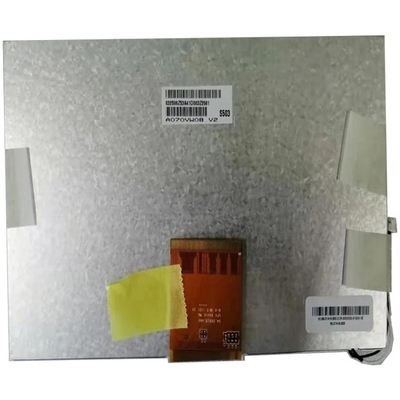

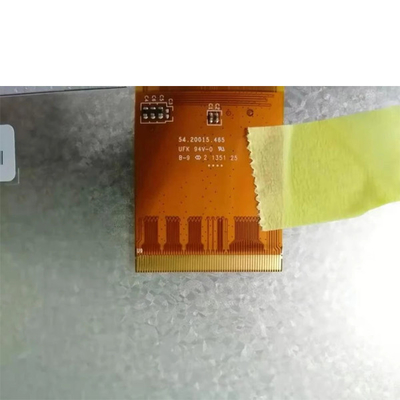

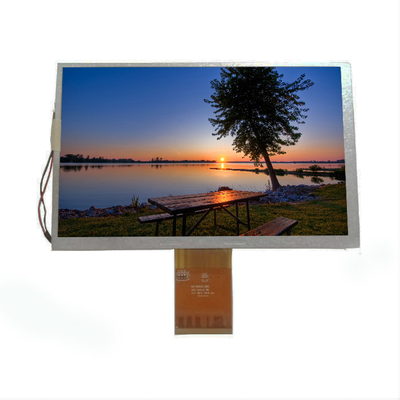

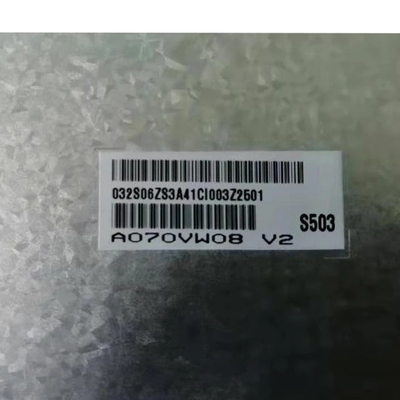

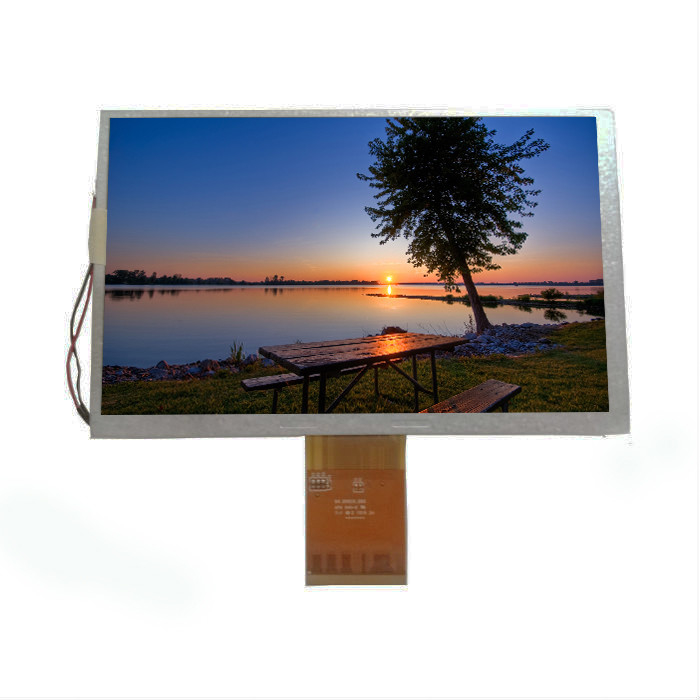

7.0 inch lcd display 800*480 A070VW08 V2 TTL LCD monitor lcd panal
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A070VW08 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 888 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A070VW08 V2 | Screen Size: | 7.0 Inch |
|---|---|---|---|
| Active Area: | 152.4(H)×91.44(V) Mm | Outline Dim.: | 165(H)×104(V) ×5.4(D) Mm |
| Bezel Area: | 154.40(H)×93.44(V) Mm | View Direction: | 6 O'clock |
| Weight: | 160g | Application: | Industrial / Automotive Display |
Product Description
7.0 inch lcd display 800*480 A070VW08 V2 TTL LCD monitor lcd panal
Product details :
| AUO LCD SCREEN A070VW08 V2 | |
| Panel Brand | AUO |
| Panel Model | A070VW08 V2 |
| Panel Size | 7.0 inches |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800*480(RGB), WVGA, 133PPI |
| Pixel Format | RGB horizontal bar |
| Display Area | 152.4(W)*91.44(H) mm |
| Viewable area | 154.40(W)*93.44(H) mm |
| physical dimension | 165(W)*104(H) *5.4(T) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 500 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) |
| Display Mode | TN, normally white display, transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M, 50% NTSC |
| Lamp Type | 3S11P WLED, 10K hours, without driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 160g |
| Signal Interface | TTL (1 ch, 8-bit) + SPI, 60 pins, FPC |
| Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| working environment | Working: -20 ~ 70 °C; Storage: -30 ~ 80 °C |
1. We are committed to provide 100% new original.
2. All the goods for sale are in stock, we can ship to you within 1-5 working days.
3. We have many different kinds of goods (all in one shop)
And more important, You will get the lowest price and high quality products.
Shipping and Package :
Abount Shipping Information:
We will ship out your items within 1-5 business days after the payment is cleared.
Standard shipping using international Airmail,Items ship from China and it takes 7-14 working days (2-3 weeks) to receive for most areas.
If you do not receive item within 30 working days (5 weeks), please contact us to investigate the case.(Brazil. Italy. 5~8 weeks)
About Customs Duty & Handling Fee:
For all customers` orders, we do not charge handing fee, even 1pcs part.
When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.
FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of A070VW08 V2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for A070VW08 V2 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the A070VW08 V2 I receive can't work ?
A: The A070VW08 V2 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
