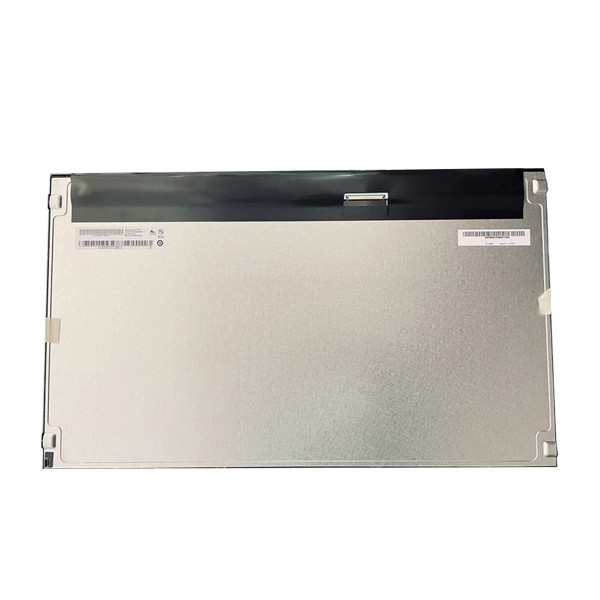

New Original M215HTN01.1 21.5 Inch 60Hz 1920(RGB)*1080 Resolution LCD Display for Desktop Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M215HTN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M215HTN01.1 | Diagonal Size: | 21.5 Inch |
|---|---|---|---|
| Active Area: | 476.64(H)×268.11(V) Mm | Outline Dim.: | 495.6(H)×292.2(V) ×10.8(D) Mm |
| Bezel Area: | 479.84(H)×271.31(V) Mm | Used For: | Desktop Monitor |
Product Description
New Original M215HTN01.1 21.5 Inch 60Hz 1920(RGB)*1080 Resolution LCD Display for Desktop Monitor
Product details :
| AUO LCD SCREEN M215HTN01.1 | |
| Panel Brand | AUO |
| Panel Model | M215HTN01.1 |
| Panel Size | 21.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.84(W)×271.31(H) mm |
| Outline Size | 495.6(W)×292.2(H) ×10.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Response Time | 3.8/1.2 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 12S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.75Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Useful news:
1. If the screen model you need is not in our sales list, please leave a message and send a photo to contact us. We will recommend the right Screen for you.
2. Because we need to prepare suitable kit for your LCD screen, and the manufacturer will upgrade or update the product, some accessories will be different from the pictures shown, please refer to the actual product received.
3. We will arrange transportation within 3 working days after receipt of payment verification (excluding weekends and holidays). Before payment, please make sure your receipt information is correct. Once the package is sent, no information can be modified.
4. Our sales price does not include customs duties, VAT and all other hidden charges. Please consult the customs department of your country/region before placing an order to determine these costs.
5. If you have any problems during the operation. Please feel free to contact us. It's best to provide some photos or videos to help us check the problem. Hope we can communicate to solve. Thanks in advance.
Payment :
Escrow pls make order straight.
Other payment terms, like Paypal, T-T etc, pls contact me.
Shipping:
Shipping:
When you place an order,please choose a shipping method and pay for the order including the shipping fee,We will send the items within X days once your payment is completed.
We do mot guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,which may affect how quickly your product is inspected.Please note that buyers are responsible for all additional customs fees,brokerage fees,duties,and taxes for refused shipments.
The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
Warranty service:
1.All the products is 120 days warranty.
2.Defective or broken products must be returned within 20 days after delivered.
3.Just please be patient give us 3 working days to process your returned after we received your returned package.
4.All returned shipping cost will be buyer responsibility.
FAQ:
Q: How to order lcd M215HTN01.1 ?
A: We accept the T/T , WESTERN UNION , PAYPAL
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd's quality and lifetime better than that compatible lcd .
Q: Do you accept the sample order M215HTN01.1 ?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
