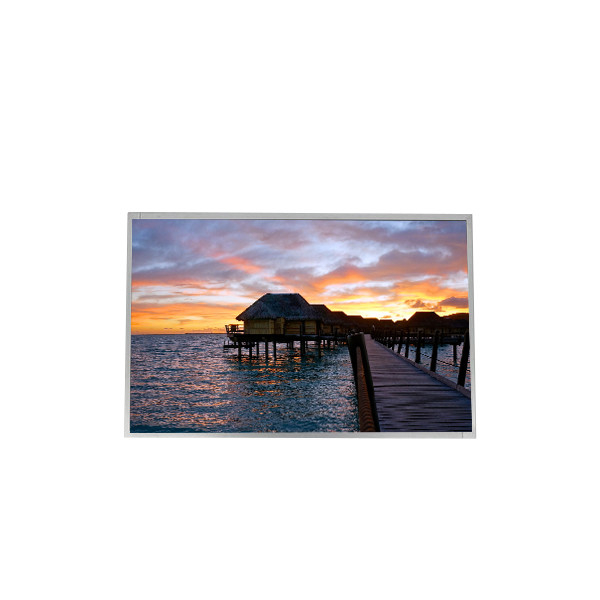

The 19.0 Inch LCD Display New original M190PW01 V8
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190PW01 V8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190PW01 V8 | Diagonal Size: | 19.0 Inch |
|---|---|---|---|
| Active Area: | 408.24(H)×255.15(V) Mm | Outline Dim.: | 428(H)×278(V) ×10.8(D) Mm |
| Bezel Area: | 412.24(H)×259.15(V) Mm | Used For: | Desktop Monitor |
Product Description
The 19.0 Inch LCD Display New original M190PW01 V8
Product details :
| AUO LCD SCREEN M190PW01 V8 | |
| Panel Brand | AUO |
| Panel Model | M190PW01 V8 |
| Panel Size | 19.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1440(RGB)×900, WXGA+, 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm |
| Outline Size | 428(W)×278(H) ×10.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 13S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.45Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Contact us:
Bulk order is acceptable, low prices will be offered to you for bulk order.
Any questions please contact us! Thanks.
Payment and transportation:
We provide the payment methods of T/T, HSBC, Paypal, Western Union.
The items will be delivered in 3 working days except holiday.
It is very important for you to comfirm the address and phone number of your order.You can change the address before you contact us.
The transportation of the special transportation line will arrive within 15-60 days. If you need products urgently, you can send them by express.
Shipping:
Shipping:
We will test them strictly before shipping.
We will arrange it in 1-3 working days after your payment. We only ship according to the shipping address. If you want to change shipping address, please contact us in advance in time.
Delivery time is approx: CHINA POST ECONOMY SHIPPING
United States / Canada/United Kingdom / France / Spain/ Switzerland/ New Zealand maytake 14-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil/ South America/Russia may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive) Please contact for DHL price.
Maybe you will meet the situation as below:
If you don't received the items in 15-60 days, please check the tracking number or contact us.
Any operation problems, We can provide the wireless technology support in working time.
If the goods broken during the shipping, please contact us after received the goods, we will resend or refund you.
One year warranty from the day the product sold. Some technical issue can be solved online.
FAQ:
Q: Can I pay my order of M190PW01 V8 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of M190PW01 V8 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of M190PW01 V8 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods M190PW01 V8 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
