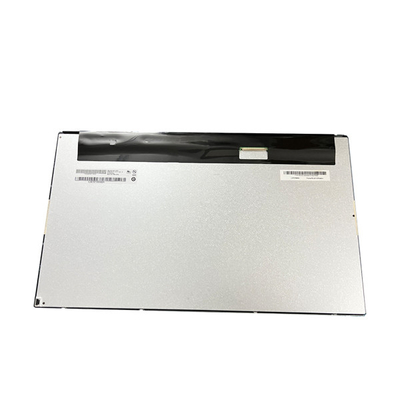

18.5 inch LCD Monitors Panel 1366(RGB)×768 M185XTN01.2 LED Screen with LVDS 30 pins
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M185XTN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185XTN01.2 | Diagonal Size: | 18.5 Inch |
|---|---|---|---|
| Active Area(mm): | 409.8 × 230.4 (H×V) | Outline(mm): | 430.4 × 254.6 × 10.4 (H×V×D) |
| Bezel Area(mm): | 413.4 × 234.0 (H×V) | Used For: | Desktop Monitor |
Product Description
18.5 inch LCD Monitors Panel 1366(RGB)×768 M185XTN01.2 LED Screen with LVDS 30 pins
Product details :
Many of the original LCDs we sell are discontinued models and USED(Grade A+) Please confirm it with us before buying if you need 100% new screens only.
| AUO LCD SCREEN M185XTN01.2 | |
| Panel Brand | AUO |
| Panel Model | M185XTN01.2 |
| Panel Size | 18.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1440(RGB)×900, WXGA+, 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.4(W)×254.6(H) ×10.4(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 7S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.29Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
All items would be tested before shipping. Please contact us immediately if the item's damaged when you receive it. Thank you!
*IMPORTANT*
PLEASE CONTACT US WHEN YOU DON'T RECEIVE YOUR PARCELS IN 30 DAYS. Parcels would be returned if unclaimed in 15-30 days.
We use the fastest shipping service according to the freight you pay, Delivery in 7-15 days to most European, North American and Asian countries. Up to 30-45 days in other countries. Express shipping services available(DHL/FEDEX/TNT/ARAMEX/UPS)
DHL / FEDEX / UPS services are available. Please contact us for details if they are not listed in the shipping methods.
Shipping:
Shipping:
1.Worldwide shipping.
2.we ship it by DHL to all the customer,it arrive you in 3-7days,and some country may be need to pay some duty fees,It depend on the receiver’s country policy.
If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
3.We are not responsible for any import fees,remote area charges,taxes or other Customs fees.
-Guarantee
1.All items will be strictly tested before shipping.
2.Warranty is 90 days.
Return Policy:
All returns must be informed before returning.
If the item is damaged or can’t be used due to quality problem, then you can exchange it for a new one or get refund within 7 days after you receive ouritem. Shipping and handling charges cannot be refunded.Exchange or refund will be made after receiving the returning product. The return item and its accessories must be kept original and undamaged.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
FAQ:
Q: How to make payment of M185XTN01.2 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of M185XTN01.2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods M185XTN01.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90 days warranty .
