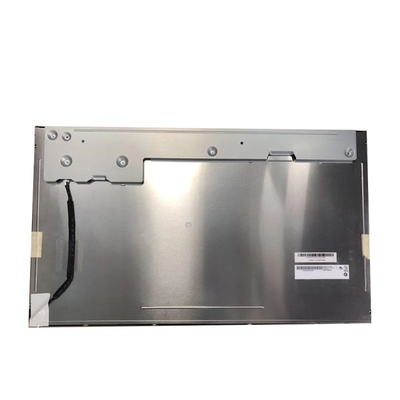

24.0 inch 1920(RGB)×1080 IPS AUO display G240HW01 V0 TFT LCD screen panel for industry
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G240HW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G240HW01 V0 | Diagonal Size: | 24.0 Inch |
|---|---|---|---|
| Active Area: | 531.36(H)×298.89(V) Mm | Outline Dim.: | 556(H)×323.2(V) ×17(D) Mm |
| Bezel Area: | 535.36(H)×302.89(V) Mm | Designed For: | Industrial |
Product Description
24.0 inch 1920(RGB)×1080 IPS AUO display G240HW01 V0 TFT LCD screen panel for industry
Product details :
| AUO LCD SCREEN G240HW01 V0 | |
| Brand | AUO |
| Model | G240HW01 V0 |
| Diagonal Size | 24.0" |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 91PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 531.36(H)×298.89(V) mm |
| Outline Dim. | 556(H)×323.2(V) ×17(D) mm |
| Bezel Area | 535.36(H)×302.89(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16/9 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AMVA3, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [10S7P] , 50K hours , With LED Driver |
| Weight | 2.30Kgs (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
Payment Information:
Other payment terms, like Paypal, T-T etc, pls contact me.
Shipping:
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Warranty service:
1.All the products is 120 days warranty.
2.Defective or broken products must be returned within 20 days after delivered.
3.Just please be patient give us 3 working days to process your returned after we received your returned package.
4.All returned shipping cost will be buyer responsibility.
Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason,However,the buyer should make sure that the items returned are in their original conditions. if the items are damaged or lost when they are returned,the buyer will be responsible for such damage or loss,and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
FAQ:
Q: Can I pay my order of G240HW01 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G240HW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of G240HW01 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
