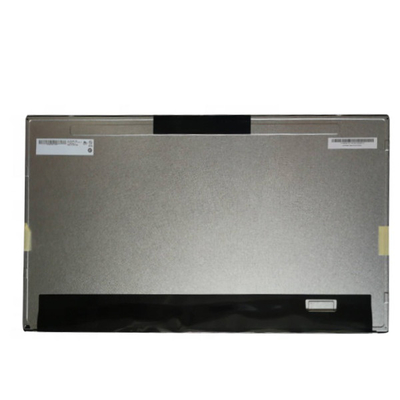

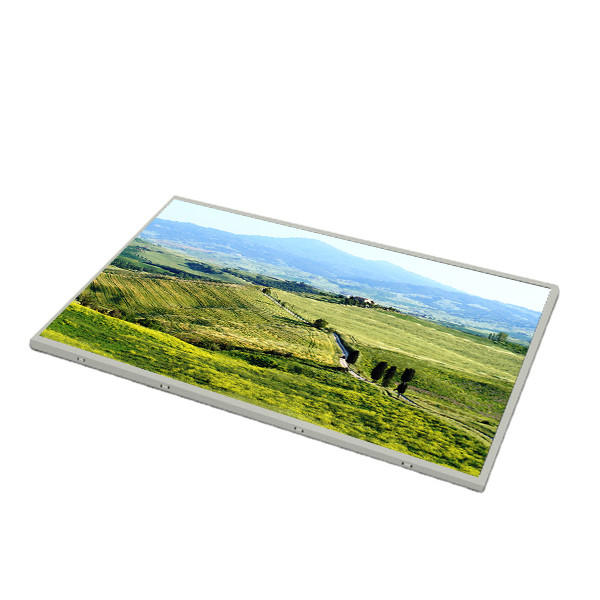

G238HAN01.0 Brand 23.8 inch 1920(RGB)×1080 Full HD lcd display Screen G238HAN01.0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G238HAN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G238HAN01.0 | Diagonal Size: | 23.8 Inch |
|---|---|---|---|
| Active Area(mm): | 527.04 × 296.46 (H×V) | Outline(mm): | 543 × 317.4 × 11.65 (H×V×D) |
| Bezel Area(mm): | 530.2 × 299.6 (H×V) | Designed For: | Industrial / Medical Imaging |
Product Description
G238HAN01.0 Brand 23.8 inch 1920(RGB)×1080 Full HD lcd display Screen G238HAN01.0
Product details :
Customers and friends, our products are industrial grade products, our LCD modules have been in the medical, power, security, automated teller machines, instrumentation and other industries widely used, the quality is guaranteed. Please note before order the product drawings and title. Electrical properties, structure and drawings are the same, the title reflects general characteristics of the product.
Lot number, please feel free to contact us.
| AUO LCD SCREEN G238HAN01.0 | |
| Panel Brand | AUO |
| Panel Model | G238HAN01.0 |
| Panel Size | 23.8" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 (FHD) 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | 530.2(W)×299.6(H) mm |
| Outline Size | 543(W)×317.4(H) ×11.65(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 17S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.28±0.08Kgs |
| Application | Industrial Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering.
1.Tell us the LCD model name in your hand now ,such as : G238HAN01
2.Tell us your laptop name , such as : dv6000 ,G480, if you don't have the LCD model.
3.Please check the LCD screen size and resolution.
4.Please check the signal interface (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin ) and position.
Contact me if u have any question, We will respond within 24 hours.
If you buy more quantity, Please contact us .buy more parts. used the "Add to cart" we will make the discount for you.
Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
Shipping:
Shipment:
When you place an order,please choose a shipping method and pay for the order including the shipping fee,We will send the items within X days once your payment is completed.
We do mot guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,which may affect how quickly your product is inspected.Please note that buyers are responsible for all additional customs fees,brokerage fees,duties,and taxes for refused shipments.
The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason,However,the buyer should make sure that the items returned are in their original conditions. if the items are damaged or lost when they are returned,the buyer will be responsible for such damage or loss,and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
FAQ:
Q: How to make payment of G238HAN01.0 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of G238HAN01.0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of G238HAN01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of G238HAN01.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
