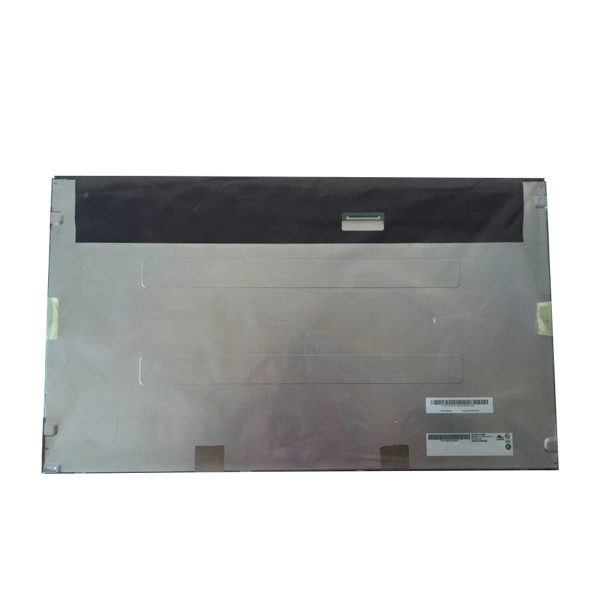

23.0 inch G230HAN01.1 1920(RGB)×1080 lcd panel 30 pins lcd display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G230HAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G230HAN01.1 | Diagonal Size: | 23.0 Inch |
|---|---|---|---|
| Active Area: | 509.184(H)×286.416(V) Mm | Outline Dim.: | 533.2(H)×312(V) ×11(D) Mm |
| Bezel Area: | 513.784(H)×291.016(V) Mm | Designed For: | Industrial / Medical Imaging / Gaming |
Product Description
23.0 inch G230HAN01.1 1920(RGB)×1080 lcd panel 30 pins lcd display screen
Product details :
| AUO LCD SCREEN G230HAN01.1 | |
| Manufacturer | AUO |
| Model Name | G230HAN01.1 |
| Screen Size | 23.0" |
| Screen Type | a-Si TFT-LCD , LCM |
| Pixel Number | 1920(RGB)×1080 (FHD) 95PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm | 509.184 × 286.416 (H×V) |
| Outline(mm) | 533.2 × 312 × 11 (H×V×D) |
| Bezel Area(mm) | 513.784 × 291.016 (H×V) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AHVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 18S4P WLED , 30K hours , No Driver |
| Mass | 1.50±0.15Kgs |
| Used for | Industrial Medical Imaging Gaming |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Product Type:
We offer excellent industrial LCD products, maybe you captured pictures and cargo does not meet on LOGO, probably due to product upgrades or other reasons, but the product information completely and electrical properties, mechanical properties consistent failure to make timely notification to customers, please understand! Products will not affect your use.Display Color mismatch:The color LCD module slight deviation may be caused by a number of other reasons, such as color reflection in the monitor, lighting, background etc..However, if you think the item received is in wrong color, please contact us to see if retutn or refund.
Shipping:
We can Supply Airmail Shipping and Express Shipping to help you to save cost as following.
1. Airmail Shipping (20-60 working days)
China Post, Hong Kong Post, Singapore Post, Malaysia Post, Turkey Post, Netherlands Post, Swiss Post, DHL eCommerce, ......
2. ePacket Shipping (15-30 working days)
China Post ePacket, Netherlands Post ePacket, Swiss Post ePacket, ......
3. Special_Line Express (5-10 working days)
Warranty :
1)Please notify us ASAP if the item you received is defective.
2) All retuns must be informed before retuning.Defective item must be reported and returned within our warranty period.
3)Returmed items must have original package and be in good condition if possble. We should be provided with the tracking numberand the returning reason.
About US:
We mainly sell Industrial LCD panels and touch screens , providing information and technical consultation for all kinds of LCD screens and touch screens, Wehave many parts in stock ,such as the brand for GT/GUNZE,FUJITSU,HITECH,SIEMENS,HAKKO,WEINVIW,ELO parts. And 4.7-15 inches is between the various size of industrial screen, They are applicable to vehicles, medical equipments, injection molding machines ,industrial equipments etc.
Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason,However,the buyer should make sure that the items returned are in their original conditions. if the items are damaged or lost when they are returned,the buyer will be responsible for such damage or loss,and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
FAQ:
Q: Can you give me a discount if I need a large quantity of G230HAN01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of G230HAN01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods G230HAN01.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of G230HAN01.1 ?
A: Of course!sample order is welcome !
