IPS Ultra Wide TFT Stretched Bar LCD Screen Display G151EVN01.0 15.1 Inch RGB 1280X248
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G151EVN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G151EVN01.0 |
|---|---|---|---|
| Screen Size: | 15.1" (1/4 Cut Of 19.0") | Brightness: | 300 Cd/m² (Typ.) |
| Weight: | 700g (Max.) | Application: | Industrial / Stretched Bar LCD |
| High Light: | G151EVN01.0 stretched bar lcd screen,TFT stretched bar lcd display,Ultra Wide stretched bar lcd display |
||
Product Description

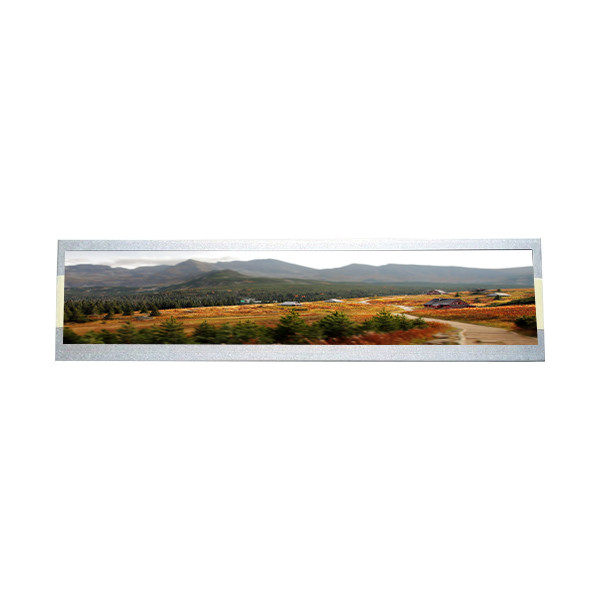

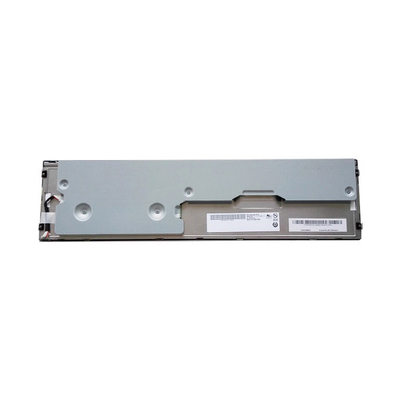

G151EVN01.0 Original 15.1 inch 1280(RGB)×248 IPS ultra wide tft stretched bar lcd screen display
| AUO LCD SCREEN G151EVN01.0 | |
| Panel Brand | AUO |
| Panel Model | G151EVN01.0 |
| Panel Size | 15.1" (1/4 cut of 19.0") |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×248, 86PPI |
| Pixel Format | RGB Vertical Stripe |
|
Display Area
|
376.32(W)×72.91(H) mm |
| Bezel Opening | 380.32(W)×75.9(H) mm |
| Outline Size | 396(W)×100.8(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Display Colors | 16.7M 70% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 700g (Max.) |
| Application | Industrial Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
