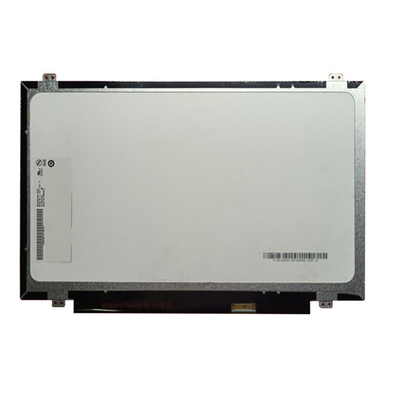

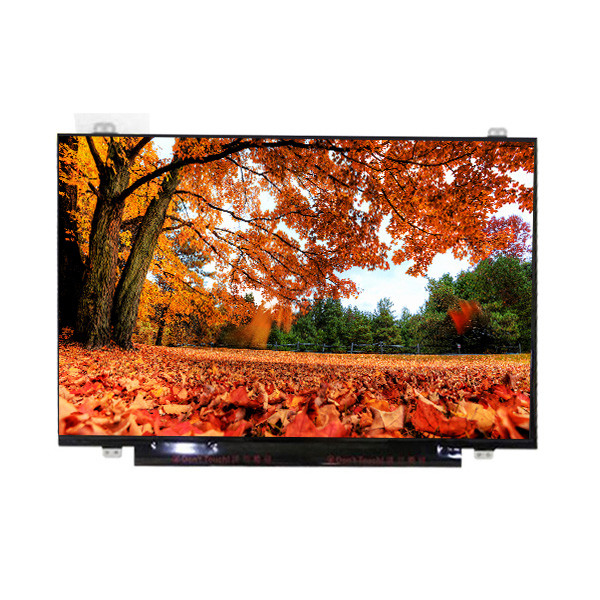

Original New AUO 14.0 inch Panel G140XTN01.0 30 Pins Interface 1366(RGB)×768 TFT LCD Display for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G140XTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G140XTN01.0 |
|---|---|---|---|
| Screen Size: | 14.0 Inch | Good View At: | 6 O'clock |
| Mass: | 270g (Max.) | Used For: | Industrial |
Product Description
Original New AUO 14.0 inch Panel G140XTN01.0 30 Pins Interface 1366(RGB)×768 TFT LCD Display for Industrial
| AUO LCD SCREEN G140XTN01.0 | |
| Brand | AUO |
| Model | G140XTN01.0 |
| Diagonal Size | 14.0 inch |
| Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 [WXGA] 112PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 309.399(H)×173.952(V) mm |
| Outline Dim. | 320.4(H)×205.1(V) ×3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Weight | 270g (Max.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (1 Lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Payment Details:
1.T/T;
2.Western Union;
3.ALI Escrow;
4.Paypal;
5. Contact us for others methods of the payment.
Shipping:
1.We ship to address ONLY.
Make sure it is correct and complete, phone number inside better.
2. If you choose DHL, but your city is remote area, you need topay more charge for the additional fee.
3. When you choose freeshipping, sometimes we will changeand choose the proper shipping way based on the actualsituation, to insure that you can get your goods fast and saft
Warranty:
1.We provide 3 months warranty.
2. Buyers are only responsible for the retum shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package).
3. Before retuming items, please make sure you get to our returm address, and write "gift" on the delivery sheet.Please use regular postal service and sand us the tracking number. As soon as we receive the items,we will repair of exchange them ASAP.
4.We do not assume any custom risk, if it easily cause any cuse any custom problem in your country we recommend you choose other shipping methods, just like China Post Air.If you have other need, pls.feel free to contact us any time.
Q: How long is the warranty of G140XTN01.0 ?
A: 90days warranty .
Q: How can I trace my order of G140XTN01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods G140XTN01.0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for G140XTN01.0 ?
A: Of course!sample order is welcome !
