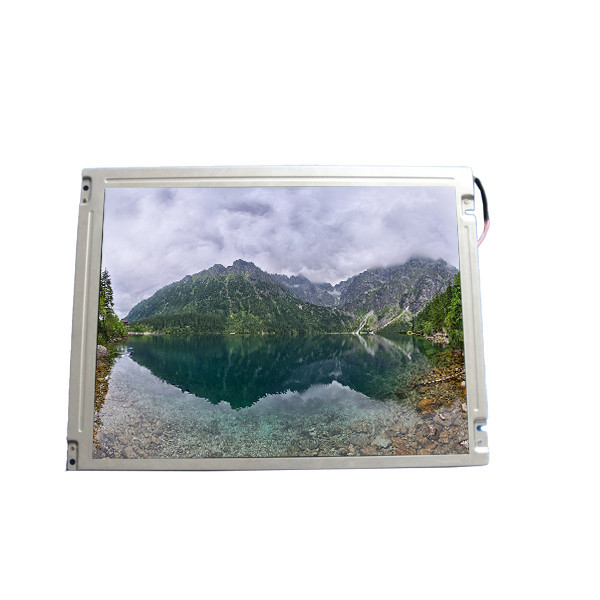

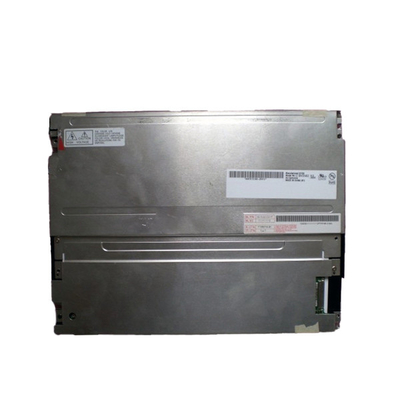

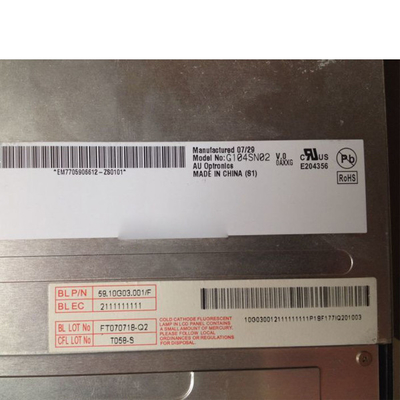

10.4 inch industrial LCD screen Display G104SN02 V0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G104SN02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G104SN02 V0 |
|---|---|---|---|
| Screen Size: | 10.4 Inch | Response: | 10/25 (Typ.)(Tr/Td) Ms |
| Mass: | 485g (Typ.) | Used For: | Industrial |
Product Description
10.4 inch industrial LCD screen Display G104SN02 V0
| AUO LCD SCREEN G104SN02 V0 | |
| Brand | AUO |
| Model | G104SN02 V0 |
| Diagonal Size | 10.4 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 96PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 211.2(H)×158.4(V) mm |
| Outline Dim. | 243(H)×184(V) ×11(D) mm |
| Bezel Area | 215.6(H)×162.7(V) mm |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 49% NTSC262K 49% NTSC |
| Light Source | CCFL [2 pcs] , 50K hours , W/O Drive |
| Weight | 485g (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
