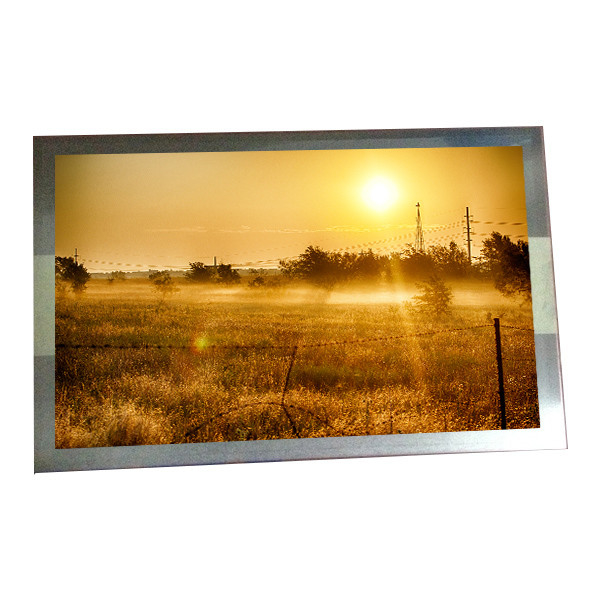

G085VW01 V0 screen lcd display 8.5 inch lcd panel 800*480 lcd Screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G085VW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G085VW01 V0 |
|---|---|---|---|
| Screen Size: | 8.5 Inch | Resolution: | 800(RGB)×480 [WVGA] 109PPI |
| Mass: | 250g (Typ.) | Used For: | Industrial |
Product Description
G085VW01 V0 screen lcd display 8.5 inch lcd panel 800*480 lcd Screen module
| AUO LCD SCREEN G085VW01 V0 | |
| Manufacturer | AUO |
| Model Name | G085VW01 V0 |
| Screen Size | 8.5 inch |
| Screen Type | a-Si TFT-LCD, LCM |
| Pixel Number | 800(RGB)×480 (WVGA) 109PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 184.8 × 110.88 (H×V) |
| Outline(mm) | 210 × 134 × 10.5 (H×V×D) |
| Bezel Area(mm) | 189.8 × 116.0 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 500: 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response | 20/10 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 250g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | CMOS (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
