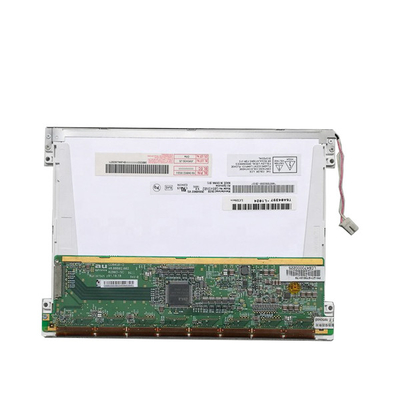

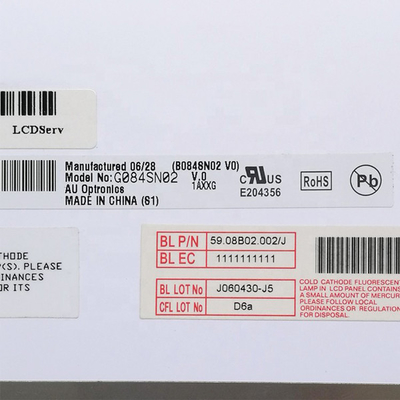

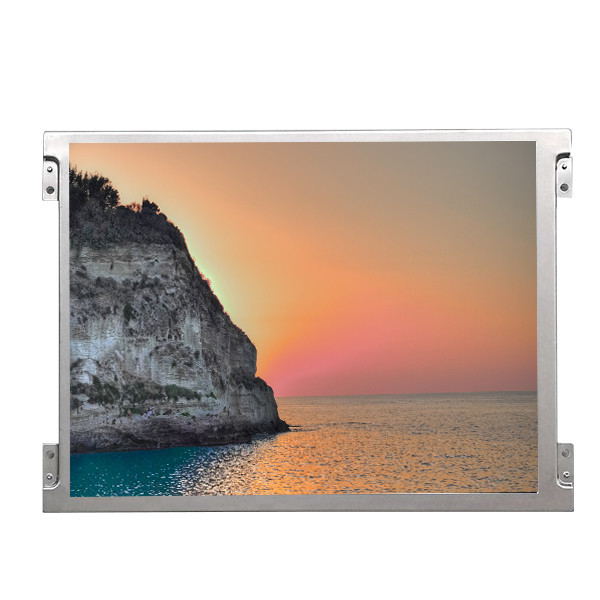

G084SN02 V0 New Original 8.4 inch SVGA ( 800*600 ) TFT LCD Display for AUO
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G084SN02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G084SN02 V0 |
|---|---|---|---|
| Screen Size: | 8.4 Inch | Resolution: | 800(RGB)×600 (SVGA) 119PPI |
| Mass: | 210±10g | Used For: | Industrial |
Product Description
G084SN02 V0 New Original 8.4 inch SVGA ( 800*600 ) TFT LCD Display for AUO
small profits but quick turnover guaranteed quality If you need more please contact us We will adjust the price to serve you better
| AUO LCD SCREEN G084SN02 V0 | |
| Brand | AUO |
| Model | G084SN02 V0 |
| Diagonal Size | 8.4 inch |
| Type | a-Si TFT-LCD , LCM |
| Pixel Format | 800(RGB)×600 [SVGA] 119PPI |
| Configuration | RGB Vertical Stripe |
| Active Area(mm) | 170.4(H)×127.8(V) mm |
| Outline(mm) | 198.2(H)×143.6(V) mm |
| Bezel Area(mm) | 173.8(H)×131.2(V) mm |
| Treatment | - |
| Luminance | 200 cd/m² (Typ.) |
| 200 cd/m² (Typ.) | 500:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/65/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 48% NTSC |
| Light Source | CCFL [1 pcs] , 20K hours , W/O Driver |
| Weight | 210±10g |
| Designed For | Industrial |
| Interface Type | LVDS (1 ch, 6-bit) 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
