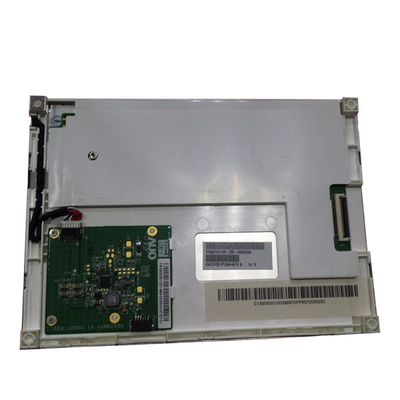

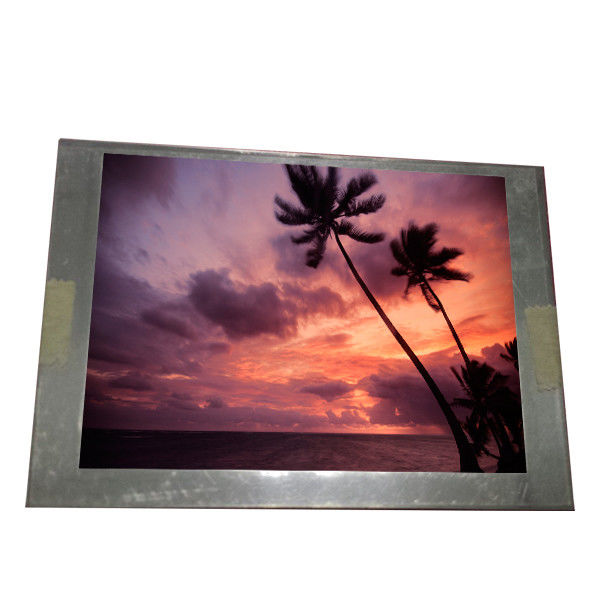

G057QN01 V1 5.7 inch 320(RGB)×240 Industrial LCD touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G057QN01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G057QN01 V1 |
|---|---|---|---|
| Screen Size: | 5.7 Inch | Resolution: | 320(RGB)×240, QVGA, 70PPI |
| Weight: | 160/175g (Typ./Max.) | Used For: | Industrial |
Product Description
G057QN01 V1 5.7 inch 320(RGB)×240 Industrial LCD touch screen
| AUO LCD SCREEN G057QN01 V1 | |
| Manufacturer | AUO |
| Model Name | G057QN01 V1 |
| Screen Size | 5.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | 144 × 104.6 (H×V×D) |
| Bezel Area(mm) | 118.2 × 89.4 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 12 o'clock |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Display Colors | 262K 50% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 160/175g (Typ./Max.) |
| Application | Industrial |

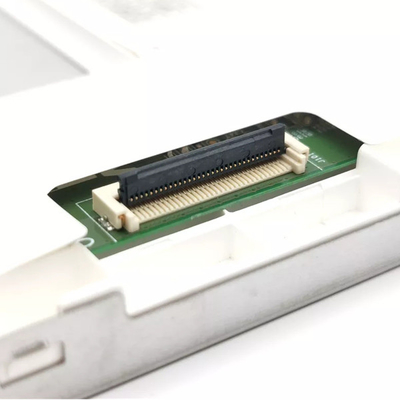

| Signal Interface | CMOS (1 ch, 6-bit) , 33 pins Connector |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
