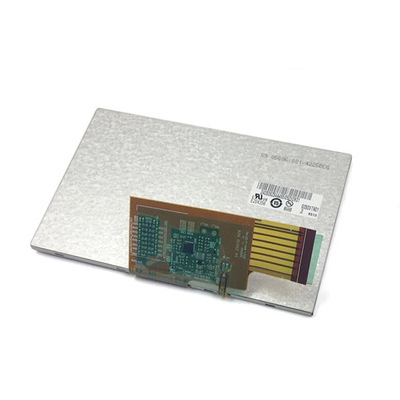

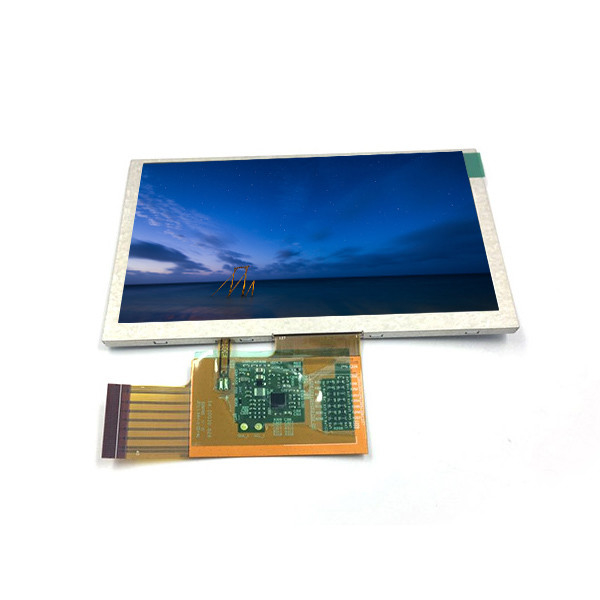

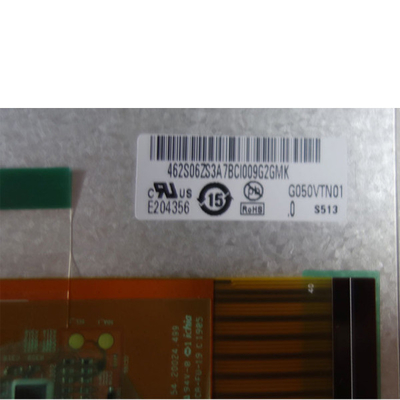

5.0 inch 800(RGB)×480 AUO display G050VTN01.0 TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G050VTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 943PCS |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | G050VTN01.0 |
|---|---|---|---|
| Screen Size: | 5.0 Inch | Pixel Number: | 800(RGB)×480 [WVGA] 188PPI |
| Weight: | 58.0±2.0g | Used For: | Industrial |
Product Description
5.0 inch 800(RGB)×480 AUO display G050VTN01.0 TFT LCD Screen
| AUO LCD SCREEN G050VTN01.0 | |
| Brand | AUO |
| Model | G050VTN01.0 |
| Diagonal Size | 5.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 188PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 108(H)×64.8(V) mm |
| Outline Dim. | 120.7(H)×76.3(V) ×3.3(D) mm |
| Bezel Area | 111.25(H)×68.7(V) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 370 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Response Time | Response Time |
| Viewing Angle | 75/75/65/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.2M 50% NTSC |
| Light Source | WLED [3S3P] , 20K hours , W/O Driver |
| Weight | 58.0±2.0g |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 8-bit) , 40 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
