27.0 Inch 2560*1440 SG2701G02-4 LCD Screen For Desktop Monitor LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | CSOT |
| Model Number: | SG2701G02-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 980 PCS |
|
Detail Information |
|||
| Model: | T215HTN01.1 | Diagonal Size: | 27.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440, Quad-HD 108PPI | Luminance: | 0 Cd/m² |
| Response Time: | 5 (Typ.)(G To G)(OD) | Application: | Desktop Monitor /Gaming |
| Transmissivity: | 3.0% (Typ.)(with Polarizer) | Support Color: | 16.7M 72% NTSC |
| Frame Rate: | 240Hz | Interface Type: | EDP (8 Lanes) , HBR2 (5.4G/lane) , 51 Pins Connector |
| Highlight: | SG2701G02-4 LCD screen,SG2701G02-4,27.0 inch LCD screen for Desktop Monitor |
||
Product Description

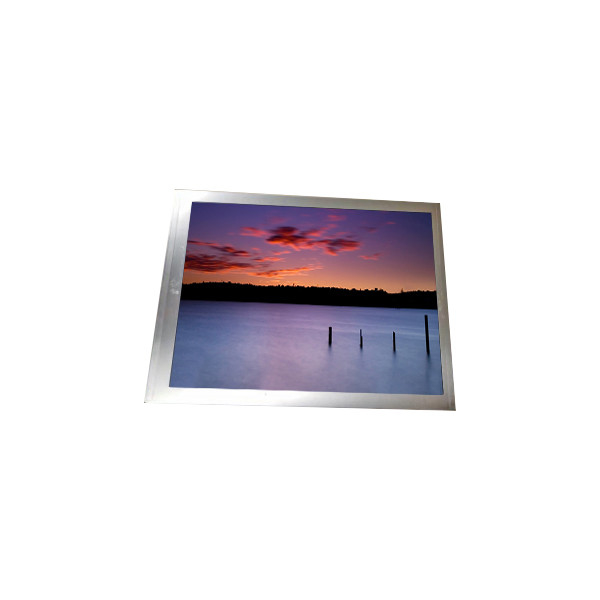

27.0 inch 2560*1440 SG2701G02-4 LCD screen for Desktop Monitor LCD panel
| Brand | CSOT |
| Model P/N | SG2701G02-4 |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 2560(RGB)×1440, Quad-HD 108PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline Size | 609.096(W)×348.369(H) ×1.27(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 2500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 5 (Typ.)(G to G)(OD) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transmissive |
| Glass Depth | 0.38+0.38 mm |
| Transmissivity | 3.0% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72% NTSC |
| Light Source | No B/L |
| Panel Weight | TBD |
| Designed For | Desktop Monitor /Gaming |
| Frame Rate | 240Hz |
| Touch Panel | Without |
| Driver IC | COF Built-in 8 source chips |
| Interface Type | eDP (8 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
