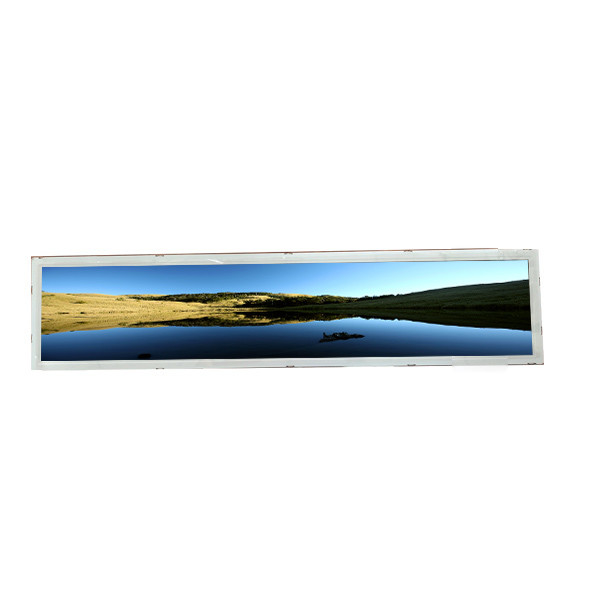

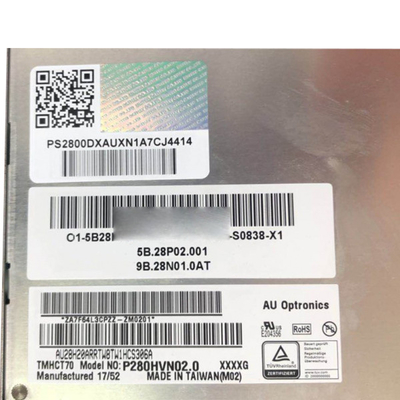

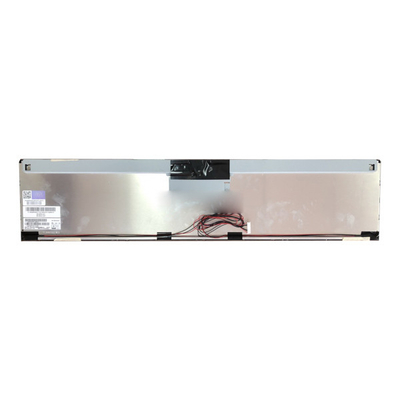

AUO P280HVN02.0 28.0 Inch LCD Screen Module RGB 1920X360 FHD 69PPI LVDS Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P280HVN02.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Foam Cotton |
| Delivery Time: | Within 5 working days |
| Payment Terms: | L/C, T/T, Western Union/PayPal |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Panel Brand: | AUO | Panel Model: | P280HVN02.0 |
|---|---|---|---|
| Panel Size: | 28.0 Inch | Pixel Number: | 1920(RGB)×360, 69PPI |
| Panel Weight: | 1.10Kgs (Typ.) | Application: | Digital Signage / Stretched Bar LCD |
| High Light: | P280HVN02.0 LCD Screen Module,FHD 69PPI LCD Screen Module,LVDS Interface LCD Screen Module |
||
Product Description
| AUO LCD SCREEN P280HVN02.0 | |
| Panel Brand | AUO |
| Panel Model | P280HVN02.0 |
| Panel Size | 28.0" (1/3 cut of 32.0") |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 69PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 698.4(W)×132.3(H) mm |
| Bezel Opening | 702.4(W)×133.86(H) mm |
| Outline Size | 733.78(W)×165.34(H) mm |
| Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Brightness | 700 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 6.5 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 19S4P WLED , 70K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.10Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8/10-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| P280HVN02.0 Original 28.0 inch 1920(RGB)×360 LCD Screen Module for AUO | |
Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
FAQ:
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of P280HVN02.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for P280HVN02.0 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of P280HVN02.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Warranty :
1.We take 6 months warranty from the shipping date , no matter what quality problem it's .
2.Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.
