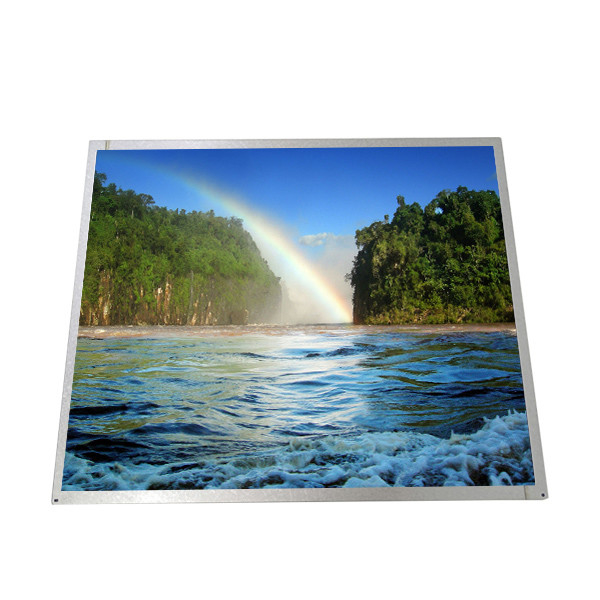

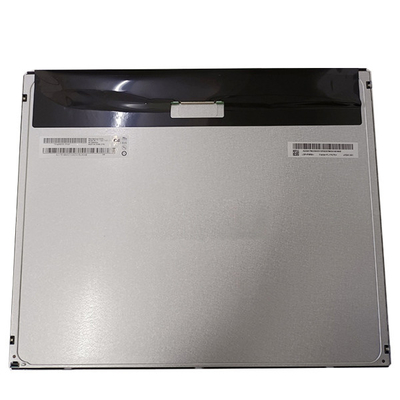

AUO 17 Inch TFT LCD Panel P170ETN01.0 1280x1024 LVDS Digital Signage LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P170ETN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Manufacturer: | AUO | Model Name: | P170ETN01.0 |
|---|---|---|---|
| Screen Size: | 17 Inch | Resolution: | 1280(RGB)×1024, SXGA, 96PPI |
| Display Size: | 337.92(W)×270.336(H) Mm | Brightness: | 250 Cd/m² (Typ.) |
| Display Colors: | 16.7M 72% NTSC | Apply To: | Digital Signage |
| High Light: | 17 inch TFT LCD Panel,Digital Signage TFT LCD Panel,LVDS Digital Signage LCD Display |
||
Product Description
AUO 170ETN01.0 1280*1024 Digital Signage LCE SCREEN
Product details :
| AUO LCD SCREEN P170ETN01.0 | |
| Panel Brand | AUO |
| Panel Model | P170ETN01.0 |
| Panel Size | 17.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024, SXGA, 96PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 337.92(W)×270.336(H) mm |
| Bezel Opening | 341.7(W)×274.1(H) mm |
| Outline Size | 358.5(W)×296.5(H) ×10.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.8/1.2 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 9S4P WLED , 30K hours , Without Driver |
| Designed For | Digital Signage |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.27Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO 17 inch TFT LCD Panel P 170ETN01.0 with 1280*1024 Digital Signage LVDS cable lcd display | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel P170ETN01.0 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
