G170HAN01.1 Industrial LCD Panel Display 350 Cd/M2 LVDS Input 60HZ Industrial LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G170HAN01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G170HAN01.1 | Diagonal Size: | 17inches |
|---|---|---|---|
| Resolution: | 1920(RGB)×1920, 159PPI | Display Area: | 305.28(W)×305.28(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Display Colors: | 16.7M 72% NTSC |
| High Light: | 350 cd/m2 Industrial LCD Panel Display,LVDS input Industrial LCD Panel Display,60HZ Industrial LCD screen |
||
Product Description

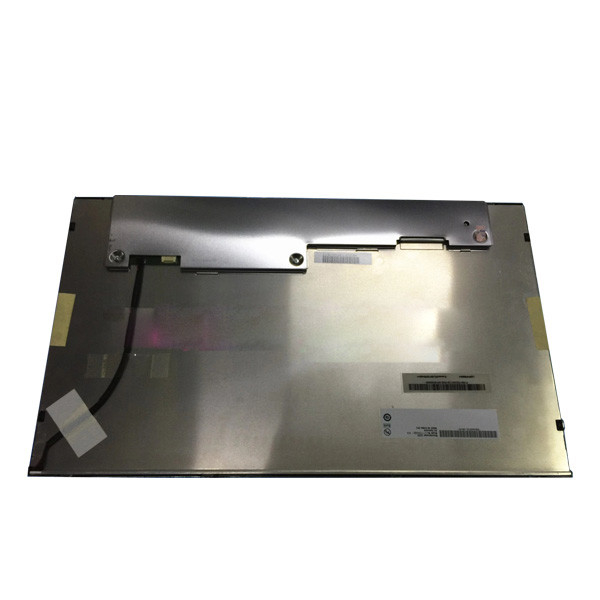

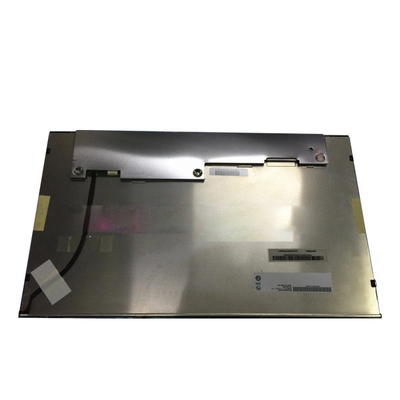

AUO G170HAN01.1 support 1920*1920 LCD screen
Product details :
| AUO LCD SCREEN G170HAN01.1 | |
| Panel Brand | AUO |
| Panel Model | G170HAN01.1 |
| Panel Size | 17" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1920, 159PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 305.28(W)×305.28(H) mm |
| Outline Size | 325.01(W)×319.33(H) ×12.43(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 10S6P WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Designed For | Industrial |
| Touch Screen | Without |
| Panel Weight | 1.20Kgs(Max.) |
| Signal Interface | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| LCD panel G170HAN01.1 support 1920*1920 350 cd/m LVDS input 60HZ Industrial LCD screen | |
Why Choose Us :
We have been engaged in LCD/LED screen product sales for many years.
We offer many brands and variety models of LCD/LED screen.
As a company, we are organized around best-known brands:
SHARP, MITSUBSHI, NEC, OPTREX, KYOCERA,AUO, CMO, INNOLUX,Samsung, LG-Philps.
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance
Customs in the destination Customs , It depends the laws in the destination country .
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of G170HAN01.1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods G170HAN01.1?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of G170HAN01.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
Before order:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us. We reply your ebay message within 24 hours,thank you!
