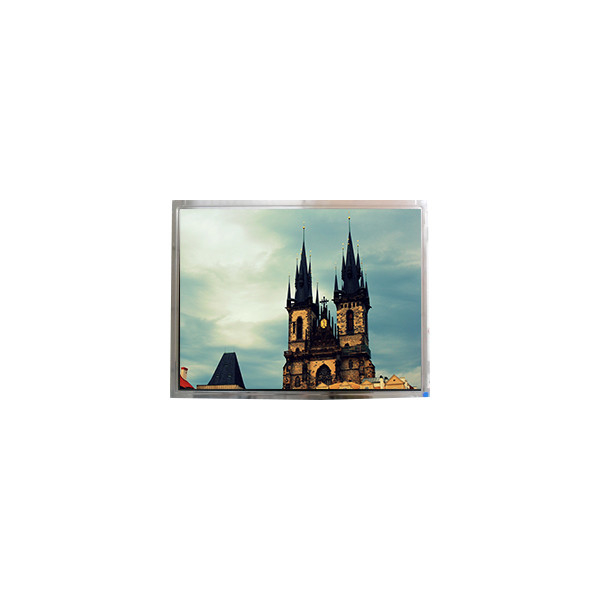

LCD Display Screen Module 20.0 Inch 1600*900 LVDS LTM200KT08-W02
Product Details:
| Place of Origin: | China |
| Brand Name: | Samsung |
| Model Number: | LTM200KT08-W02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LTM200KT08-W02 | Diagonal Size: | 20.0" |
|---|---|---|---|
| Resolution: | 1600(RGB)×900, HD+ 91PPI | Active Area: | 442.8(W)×249.075(H) Mm |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Display Colors: | 16.7M 72%NTSC |
| Backlight: | 9S3PWLED, 30K Hours, No Driver | Work Mode: | TN, Normally White, Transmissive |
| Signal Type: | LVDS (2 Ch, 8-bit), 30 PinsConnector | Used For: | Desktop Monitor |
Product Description
LCD Display Screen Module 20.0 Inch 1600*900 LVDS LTM200KT08-W02
Product details :
| Brand | Samsung |
| Model P/N | LTM200KT08-W02 |
| Diagonal Size | 20.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1600(RGB)×900, HD+ 91PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 442.8(W)×249.075(H) mm |
| Bezel Opening | 446.8(W)×253.2(H) mm |
| Outline(mm) | 462.8 × 272× 10.3 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(Tr+Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 9S3PWLED, 30K hours, No Driver |
| Mass | 1.30Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance
Customs in the destination Customs , It depends the laws in the destination country .
FAQ:
Q: How do you ship my goods LTM200KT08-W02 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of LTM200KT08-W02 ?
A: 90 days warranty .
Q: How can I trace my order of LTM200KT08-W02 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of LTM200KT08-W02 ?
A: Of course!If you make a large order, we will give you a discount.
About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us.
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us.
