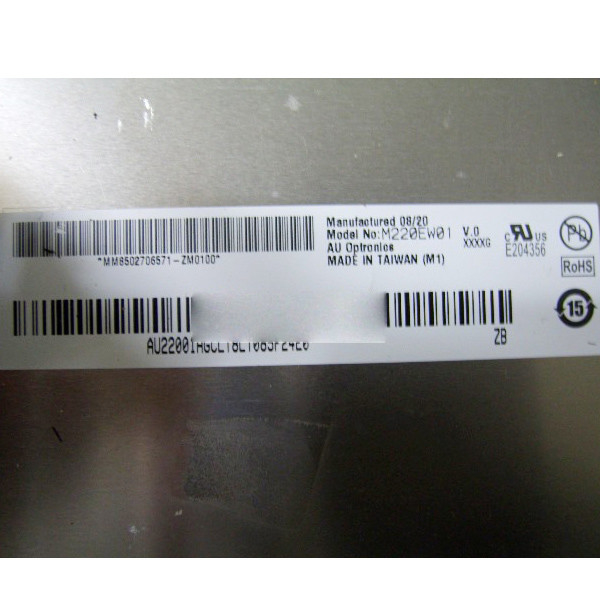

M220EW01 V0 1680x1050 TFT LCD Panel Screen Display Oem Touch Digitizer Spare Parts Assembly Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M220EW01 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M220EW01 V0 | Diagonal Size: | 22 Inches |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+, 90PPI | Display Area: | 473.76(W)×296.1(H) Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Display Colors: | 16.7M 72% NTSC |
Product Description
M220EW01 V0 1680x1050 TFT LCD Panel Screen
Product details :
| AUO LCD SCREEN M220EW01 V0 | |
| Panel Brand | AUO |
| Panel Model | M220EW01 V0 |
| Panel Size | 22.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm |
| Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.38Kgs |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| M220EW01 V0 1680x1050 TFT LCD Panel Screen Display Oem Touch Digitizer Spare Parts Assembly Replacement | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance
Customs in the destination Customs , It depends the laws in the destination country .
FAQ:
Q: If I place order now,when will you ship the goods of M220EW01 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of M220EW01 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods M220EW01 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M220EW01 V0 ?
A: We accept T/T , Paypal , western union .
About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us.
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us.
