M201UN03 V0 TFT LCD 20.1inch tft screen resolution 1600*1200 LVDS inter LVDS (2 ch, 8-bit) , 30 pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M201UN03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M201UN03 V0 | Diagonal Size: | 20.1 Inches |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200, UXGA, 99PPI | Display Area: | 408(W)×306(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Display Colors: | 16.7M 99% Adobe RGB |
Product Description

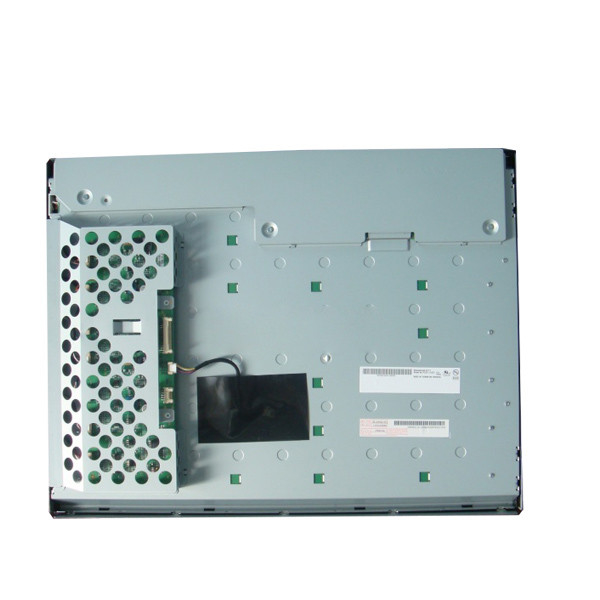

AUO 20.1" M201UN03 V0 1600*1200 a-Si TFT-LCD , LCM LCD Laptop Screen
Product details :
| AUO LCD SCREEN M201UN03 V0 | |
| Panel Brand | AUO |
| Panel Model | M201UN03 V0 |
| Panel Size | 20.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1600(RGB)×1200, UXGA, 99PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 408(W)×306(H) mm |
| Bezel Opening | 413.0(W)×311.0(H) mm |
| Outline Size | 432(W)×331.5(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Display Colors | 16.7M 99% Adobe RGB |
| Lamp Type | WLED , With LED Driver |
| Frequency | 60Hz |
| Designed For | Desktop Monitor |
| Touch Screen | Without |
| Panel Weight | 3.30Kgs (Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| M201UN03 V0 TFT LCD 20.1inch tft screen resolution 1600*1200 LVDS inter LVDS (2 ch, 8-bit) , 30 pins Connector | |
