AUO M190PW01 V80E LCD screen metal shell embedded industrial control display monitor LED high bright
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190PW01 V80E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190PW01 V80E | Diagonal Size: | 19 Inches |
|---|---|---|---|
| Resolution: | 1440(RGB)×900, WXGA+, 89PPI | Display Area: | 408.24(W)×255.15(H) Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Display Colors: | 16.7M 75% NTSC |
Product Description

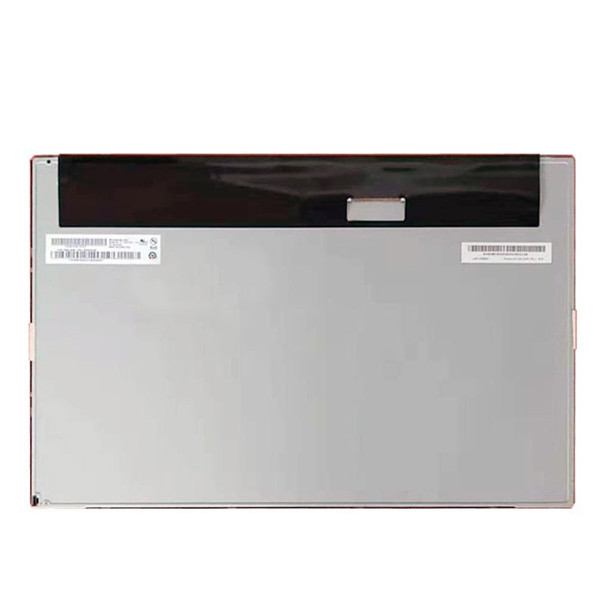

AUO M190PW01 V80E 1400*900 a-Si TFT-LCD , LCM LCD Laptop Screen
Product details :
| AUO LCD SCREEN M190PW01 V80E | |
| Panel Brand | AUO |
| Panel Model | M190PW01 V80E |
| Panel Size | 19.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1440(RGB)×900, WXGA+, 89PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 408.24(W)×255.15(H) mm |
| Bezel Opening | 412.24(W)×259.15(H) mm |
| Outline Size | 428(W)×278(H) ×10.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 75% NTSC |
| Lamp Type | 11S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.52Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO M190PW01 V80E LCD screen metal shell embedded industrial control display monitor LED high bright | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance
Customs in the destination Customs , It depends the laws in the destination country .
FAQ:
Q: Can you give me a discount if I need a large quantity of M190PW01 V80E ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of M190PW01 V80E ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of M190PW01 V80E ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of M190PW01 V80E ?
A: Of course!sample order is welcome !
About Product:
1: Please read the product information carefully to avoid buying the wrong product. If you are not sure if the product is right for you, please feel free to contact us. We have professional engineers to help you. We will ask you for pictures and some product information, please reply in time, this is very important.
2: Some products, due to different production time, different production plants, different sales areas. Some coding and details may have some differences. Please don't worry, this is a normal phenomenon. We guarantee that the products are the same.
Before order:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us.
About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
Quality assurance is provided.If you feel disappointed with the item,tell us within 7 days of delivery.Items must be returned in original condition for refund/exchange.Shipping cost incurred is on you.We understand the frustrations you might have,please contact us before opening any dispute or leaving any neutral/negative feedback.We card about each buyer and will do our endeavor to fix any problem in a good business manner.Your satisfaction is always our NO.1 priority.
Such as man-made factors, natural disasters caused damage will not in our warranty. For example: the installed improper, Nick, the tube touch bad, feed, etc... Store the selling of commodities have posted the warranty fragile tags, such as warranty tags in guarantee period be torn up. Disconnect or loss shall be deemed to be giving up the warranty, and we shall not accept any responsibility. Please attention!
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us.
Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
