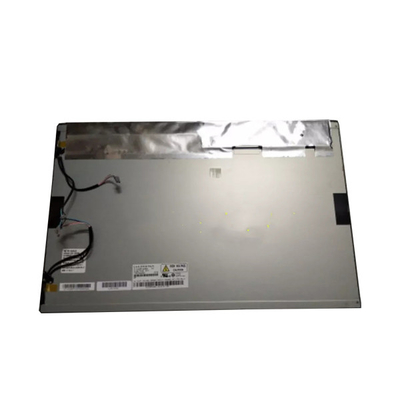

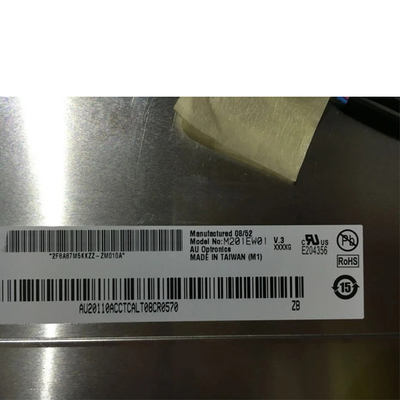

AUO M201EW01 V3 1680*1050 a-Si TFT-LCD , LCM LCD Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M201EW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M201EW01 V3 | Diagonal Size: | 20.1 Inches |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050, WSXGA+, 98PPI | Display Area: | 433.44(W)×270.9(H) Mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Display Colors: | 16.7M 72% NTSC |
Product Description
AUO M201EW01 V3 1680*1050 a-Si TFT-LCD , LCM LCD Laptop Screen
Product details :
| AUO LCD SCREEN M201EW01 V3 | |
| Panel Brand | AUO |
| Panel Model | M201EW01 V3 |
| Panel Size | 20.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 98PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 433.44(W)×270.9(H) mm |
| Bezel Opening | 438.4(W)×275.9(H) mm |
| Outline Size | 459.4(W)×296.4(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 6 pcs CCFL , 50K hours , Without Driver |
| Designed For | Desktop Monitor |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.90Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO M201EW01 V3 1680*1050 a-Si TFT-LCD , LCM LCD Laptop Screen | |
