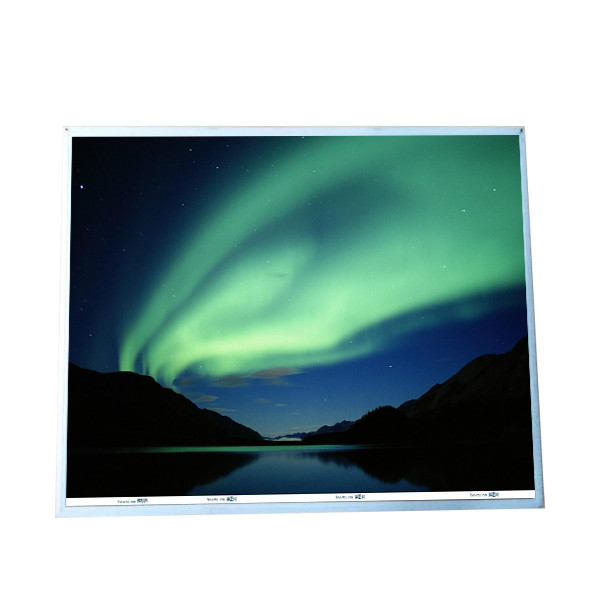

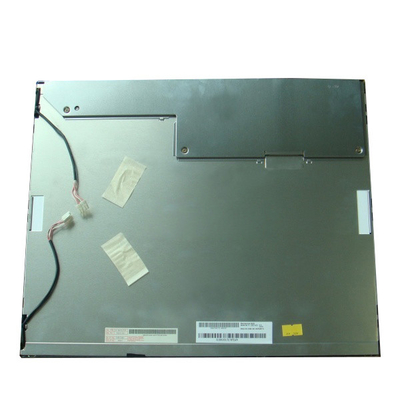

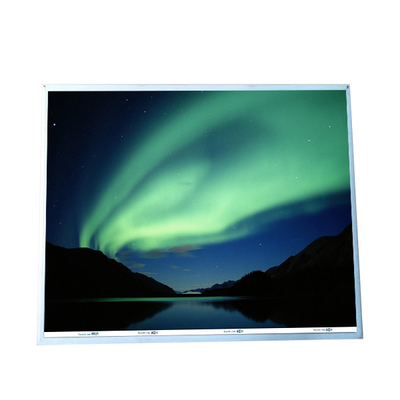

AUO 19" M190EN03 V0 1280*1024 86PPI MVA, Normally Black, Transmissive LCD Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M190EN03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M190EN03 V0 | Diagonal Size: | 19 Inches |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA,86PPI | Display Area: | 376.32(W)×301.056(H) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Display Colors: | 16.7M 67% NTSC |
Product Description
M190EN03 V1 19.0" a-Si TFT-LCD Panel for AUO
Product details :
| AUO LCD SCREEN M190EN03 V0 | |
| Panel Brand | AUO |
| Panel Model | M190EN03 V0 |
| Panel Size | 19.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×1024, SXGA, 86PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 376.32(W)×301.056(H) mm |
| Bezel Opening | 380.3(W)×305.6(H) mm |
| Outline Size | 396(W)×324(H) ×18(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Display Colors | 16.7M 74% NTSC |
| Lamp Type | 4 pcs CCFL , 50K hours , Without Driver |
| Used for | Desktop Monitor |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.50Kgs (Max.) |
| Signal Interface | LVDS (2 ch, 6-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |
| AUO 19" M190EN03 V0 1280*1024 86PPI MVA, Normally Black, Transmissive LCD Laptop Screen | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback:
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
FAQ:
Q: Can I pay my goods M190EN03 V0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods Sharp M190EN03 V0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of M190EN03 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Before orde:
Before the order, please confirm whether your machine model matching with this LCD screen, if not sure, please contact us
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
About shipping method:
Due to the continuous impact of the COVID-19 epidemic, the logistics time limit is unstable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer.
Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need specified logistics, please tell us in advance.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us.
