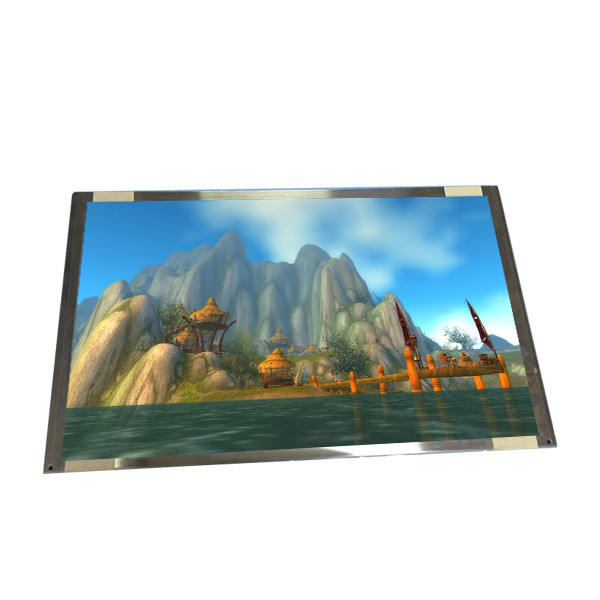

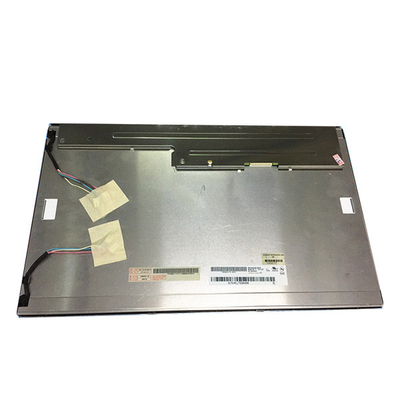

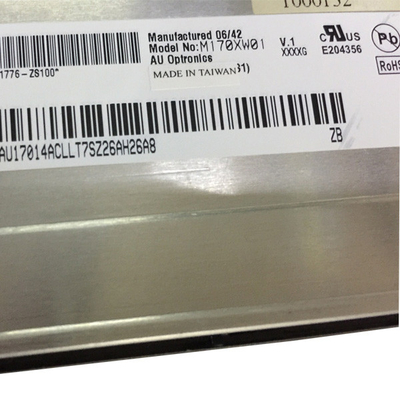

Original and new 17 Inches M170XW01 V1 Tft Lcd Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M170XW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M170XW01 V1 | Diagonal Size: | 17 Inches |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA, 96PPI | Display Area: | 337.92(W)×270.336(H) Mm |
| Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) | Display Colors: | 262K 72% NTSC |
Product Description
Original and new 17 Inches M170XW01 V1 Tft Lcd Display Panel
Product details :
| AUO LCD SCREEN M170XW01 V1 | |
| Panel Brand | AUO |
| Panel Model | M170XW01 V1 |
| Panel Size | 17.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×768, WXGA, 87PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 370.56(W)×222.336(H) mm |
| Bezel Opening | 374.6(W)×226.4(H) mm |
| Outline Size | 404(W)×248.5(H) ×17.8(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 73% NTSC |
| Lamp Type | 4 pcs CCFL , Without Driver |
| Used for | Desktop Monitor |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 2.00Kgs (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Original and new 17 Inches M170XW01 V1 Tft Lcd Display Panel | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback
1, When you get the goods , pls confirm that you have got the goods .
2, If you are satisfied with our products and service, please give us your positive feedback, that will be appreciated.
3, If you have any problem please contact us before giving any feedback , pls let us know about the problem . We will try our best to solve the problem for you ASAP. . Customers' satisfaction is very important to us .
Please let us know your requirements on panels
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
Please Note
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
FAQ
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: How to order lcd panel M170XW01 V1 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
You can track the shipment with the tracking number we give to you. If you can't get the status of your shipment or you find the status of your shipment abnormal, please feel free to contact us.
Your order should be paid within 3 days to avoid the cancellation of the order.
If you meet any questions,pls contact me first,i will try to solve for you.
