LCD Screen Display Panel

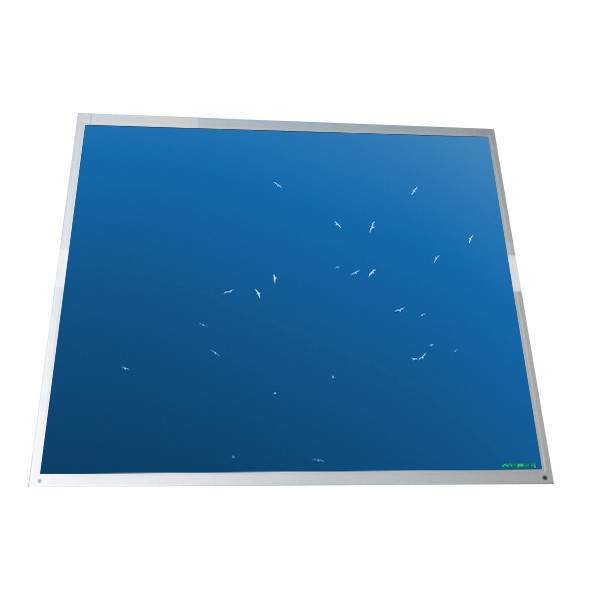

M170EG01 V0 TFT LCD Panel 1280x1024 LVDS 30 Pins Connector

All Category

Floor Standing Digital Signage

M170EG01 V0 TFT LCD Panel 1280x1024 LVDS 30 Pins Connector

Brand Name:	AUO
Model Number:	M170EG01 V0
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

M170EG01 V0

Diagonal Size:

17 Inches

Resolution:

1280(RGB)×1024, SXGA, 96PPI

Display Area:

337.92(W)×270.336(H) Mm

Viewing Angle:

70/70/70/60 (Typ.)(CR≥10)

Display Colors:

16.2M 72% NTSC

Supply Ability:

100000 Unit/Units per Month

Highlight:

M170EG01 V0 TFT LCD Panel

LVDS Connector TFT LCD Panel

17 inches TFT LCD Display

Product Description

Desktop Monitor AUO LCD SCREEN M170EG01 V0

Product details :

AUO LCD SCREEN M170EG01 V0
Panel Brand	AUO
Panel Model	M170EG01 V0
Panel Size	17.0"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1280(RGB)×1024, SXGA, 96PPI
Pixel Format	RGB Vertical Stripe
Display Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline Size	358.5(W)×296.5(H) ×17.5(D) mm
Brightness	300 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/70/70/60 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	9/3 (Typ.)(Tr/Td)
Display Colors	16.2M 72% NTSC
Lamp Type	4 pcs CCFL , 50K hours , Without Driver
Frequency	60Hz
Designed For	Desktop Monitor
Touch Screen	Without
Panel Weight	1.90Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
M170EG01 V0 1280x1024 TFT LCD LVDS (2 ch, 8-bit) , Connector 30 pins Panel Screen Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Warranty

1, We take 9 months warranty from the shipping date

2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP.

FAQ

Q: How to order AUO lcd panel M170EG01 V0 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: What is the different between original lcd panel and compatible lcd display?

A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .

Shipping and Package :

M170EG01 V0 TFT LCD Panel 1280x1024 LVDS 30 Pins Connector 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
