LCD Screen Display Panel

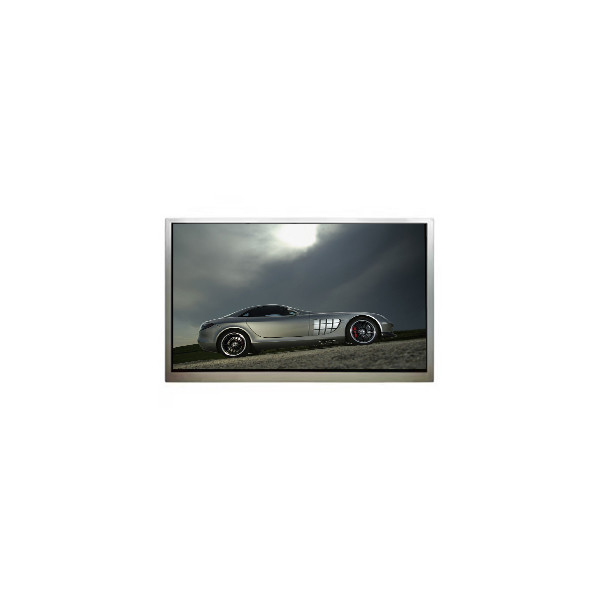

HSD070PFW3-B01 LCD Screen Modules 7.0 inches 1024*600 lcd panel

All Category

Floor Standing Digital Signage

HSD070PFW3-B01 LCD Screen Modules 7.0 inches 1024*600 lcd panel

Brand Name:	HannStar
Model Number:	HSD070PFW3-B01
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

HSD070PFW3-B01

Diagonal Size:

Resolution:

1024(RGB)×600, WSVGA 169PPI

Active Area(mm):

153.6(W)×90(H) Mm

Outline(mm):

165.75(W)×105.39(H)×3.7(D) Mm

Bezel Area(mm):

156.2(W)×92.6(H) Mm

Contrast Ratio:

800:1 (Typ.) (TM)

Designed For:

Pad & Tablet、Digital Photo Frame、Portable DVD Player、MID UMPC

Frequency:

Signal Interface:

LVDS (1 Ch, 8-bit), 40 PinsFPC

Supply Ability:

100000 Unit/Units per Month

Highlight:

DMF50081NB-FW LCD Screen Modules

QVGA LCD screen Modules

LCD screen Modules 4.7 Inches

Product Description

HSD070PFW3-B01 LCD Screen Modules 7.0 inches 1024*600 lcd panel

HSD070PFW3-B01 Product details :

Brand	HannStar
Model P/N	HSD070PFW3-B01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600, WSVGA 169PPI
Pixel Format	RGB Vertical Stripe
Active Area	153.6(W)×90(H) mm
Bezel Opening	156.2(W)×92.6(H) mm
Outline Size	165.75(W)×105.39(H)×3.7(D) mm
Surface	Hard coating
Brightness	400 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/70/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	4/12 (Typ.)(Tr/Td)
Display Colors	16.2M 50%NTSC
Lamp Type	3S9PWLED, 20K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	95.0g (Typ.)
Application	Pad & Tablet,Digital Photo Frame,Portable DVD Player,MID UMPC
Signal Interface	LVDS (1 ch, 8-bit), 40 pinsFPC
Input Voltage	3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

HSD070PFW3-B01 Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

HSD070PFW3-B01 Warranty and refund:

1 All products will be tested strictly before shipping to ensure that they work 100% normal.
2. Please test it within 3-5 days after receiving. But do not install before the test (only connect LCD to the motherboard for testing). If the LCD is damaged after installation, please order the non -refund and the warranty is invalid.
3. We provide all products with 6 months of warranty, but we must not tear off the original labels we label, nor should we use or damage any components.

HSD070PFW3-B01 FAQ:

Q: Do you accept sample orders of HSD070PFW3-B01 ?

A: Of course! Sample order is welcome.

Q: Can I pay my order of HSD070PFW3-B01 vai credit card ?

A: Yes! You can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90 days warranty.

Q: If I place order now, when will you ship the goods of HSD070PFW3-B01 ?

A: The order will be shipped within 2-3 working days after received your payment.

HSD070PFW3-B01 Shipping and Package :

HSD070PFW3-B01 LCD Screen Modules 7.0 inches 1024*600 lcd panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
