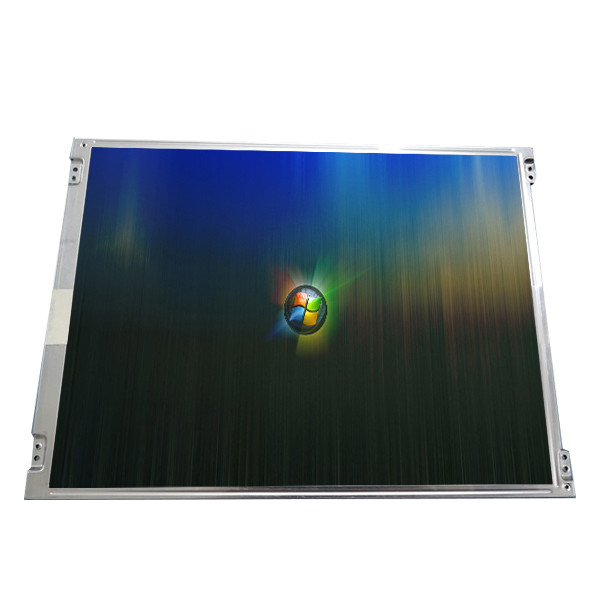

L150X2M EC-1 A Si TFT LCD Panel 1024x768 XGA 85PPI RGB Vertical Stripe
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | L150X2M EC-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | L150X2M EC-1 | Diagonal Size: | 15 Inches |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) | Display Colors: | 262K 67% NTSC |
| Highlight: | 85PPI A Si TFT LCD Panel,Desktop Monitor A Si TFT LCD Panel,Vertical Stripe A Si TFT LCD Panel |
||
Product Description
15 inch 1024*768 lcd panel L150X2M EC-1 Screen display
Product details :
| AUO LCD SCREEN L150X2M EC-1 | |
| Panel Brand | AUO |
| Panel Model | L150X2M EC-1 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Size | 336(W)×249(H) mm |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 11/24 (Typ.)(Tr/Td) |
| Display Colors | 262K 67% NTSC |
| Lamp Type | 2 pcs CCFL , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Panel Weight | 1.20Kgs (Typ.) |
| Signal Interface | TTL (2 ch, 6-bit) , 80 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| L150X2M EC-1 1024*768 XGA RGB Vertical Stripe a-Si TFT-LCD | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Reminder
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
FAQ
Q: How can I trace my order of L150X2M EC-1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods L150X2M EC-1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of L150X2M EC-1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of L150X2M EC-1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Shipping and Package
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
