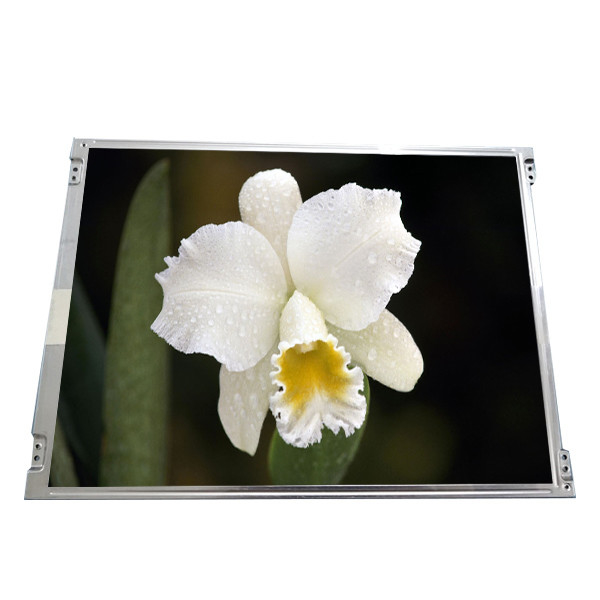

TTL Interface TFT LCD Module L150X1M-HB 1024x768 450 Cd/M2 XGA
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | L150X1M-HB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | L150X1M-HB | Diagonal Size: | 15 Inches |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) | Display Colors: | 16.7M 67% NTSC |
| Highlight: | XGA TFT LCD Module,TTL interface TFT LCD Module,L150X1M-HB TFT LCD Module |
||
Product Description
15 inch 1024*768lcd panel L150X1M-HB LCD Screen display
Product details :
| AUO LCD SCREEN L150X1M-HB | |
| Panel Brand | AUO |
| Panel Model | L150X1M-HB |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 308.1(W)×232.1(H) mm |
| Outline Size | 352.5(W)×263.5(H) mm |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 11/24 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 67% NTSC |
| Lamp Type | 4 pcs CCFL , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.40Kgs (Typ.) |
| Signal Interface | TTL (2 ch, 8-bit) , 80 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| L150X1M-HB 1024*768 450 cd/m² (Typ.) XGA TTL TFT-LCD Module | |
