DMF6104NF-FW 256x128 LCD Display Modules 5.7 Inch Rectangle Monochrome
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | DMF6104NF-FW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DMF6104NF-FW | Diagonal Size: | 5.3 Inches |
|---|---|---|---|
| Pixel Format: | 256×128 54PPI | Active Area: | 120.32(H)×60.16(V) Mm |
| Outline Dim.: | 167(H)×116(V) Mm | Bezel Area: | 127.0(H)×70.0(V) Mm |
| Luminance: | 50 Cd/m² (Min.) | Contrast Ratio: | 15:1 (Typ.) (TM) |
| High Light: | DMF6104NF-FW lcd display modules,lcd display modules 5.7 inch,Monochrome lcd display modules |
||
Product Description

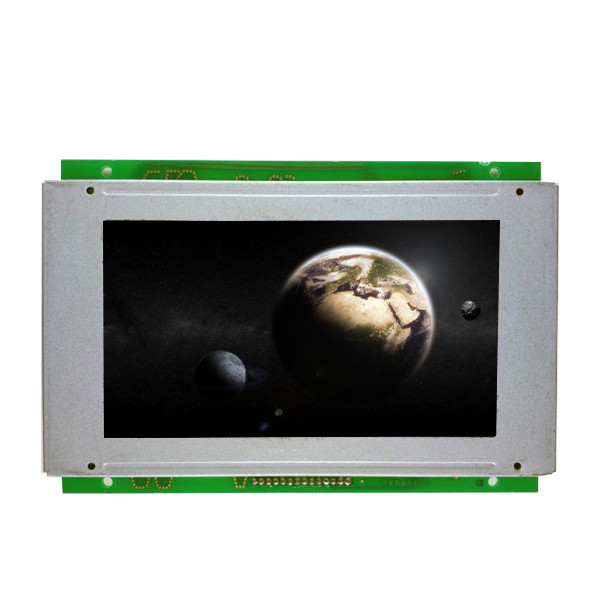

5.3 inch DMF6104NF-FW 256*128 lcd display modules
Product details :

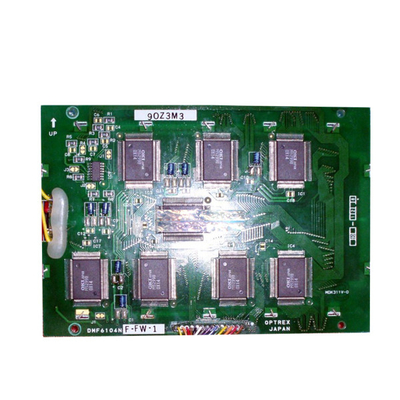

| OPTREX LCD Screen DMF6104NF-FW | |
| Panel Brand | OPTREX |
| Panel Model | DMF6104NF-FW |
| Panel Size | 5.3 inches |
| Panel Type | FSTN-LCD, LCM |
| Resolution | 256×128 54PPI |
| Pixel Format | Rectangle |
| Display Area | 120.32 × 60.16 mm (H×V) |
| Bezel Opening | 127.0 × 70.0 mm (H×V) |
| Outline Size | 167 × 116 mm (H×V×D) |
| Brightness | 50 cd/m² (Typ.) |
| Contrast Ratio | 15 : 1 (Typ.) [Transmission] |
| Display Mode | STN, Black/White (Negative), Transmissive |
| Best View on | 6 o'clock |
| Response Time | 110/160 (Typ.)(Tr/Td) ms |
| Display Colors | Monochrome |
| Lamp Type | 1 pcs CCFL , 20K hours, without driver |
| Frequency | 70Hz |
| Touch Screen | Without |
| Panel Weight | 250g (Max.) |
| Application | Industrial |
| Signal Interface | Parallel Data (4-bit) , 16 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Working: 10 ~ 40 °C ; Storage: -20 ~ 60 °C |
| 5.7 inch DMF6104NF-FW 256*128 lcd display modules | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
About Shipping:
1, PIs make sure the Icd model you need is the exact model you ordered. We shipping according to the ordered model.
2, Pls make sure the address is correct. We will ship to the address in the order. If you need to ship to different place, pls email us the address right after you made the payment.
3, Shipment will be made within 3 business days after the payment received.
4, We will test each panel strictly before shipping and make very good package of it.
FAQ
Q: How to make payment for DMF6104NF-FW ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of DMF6104NF-FW at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: If I order DMF6104NF-FW now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for DMF6104NF-FW ?
A: Of course!sample order is welcome !
The competitive advantage of product line
The Company Can Provide OEM And ODM Service
Shipping and Package
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
