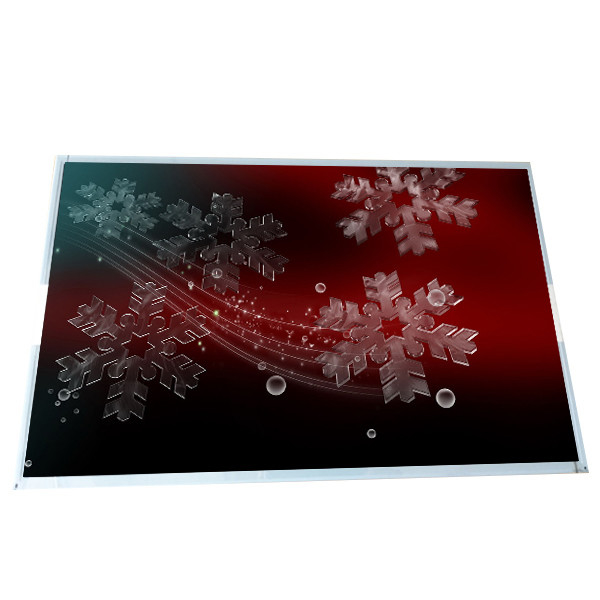

M190PW01 V1 1440x900 TFT LCD Panel Screen Display 30 Pins Connector

All Category

Floor Standing Digital Signage

M190PW01 V1 1440x900 TFT LCD Panel Screen Display 30 Pins Connector

Brand Name:	AUO
Model Number:	M190PW01 V1
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M190PW01 V1

Resolution:

1440(RGB)×900, WXGA+, 89PPI

Display Size:

408.24(W)×255.15(H) Mm

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Designed For:

Desktop Monitor

Display Colors:

16.7M 72% NTSC

Supply Ability:

100000 Unit/Units per Month

Highlight:

M190PW01 V1 TFT LCD Panel

30 pins Connector TFT LCD Panel

1440x900 TFT LCD Display

Product Description

New Original 19 inch LCD Display Panel for M190PW01 V1

Product details :

AUO LCD SCREEN M190PW01 V1
Panel Brand	AUO
Panel Model	M190PW01 V1
Panel Size	19.0"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1440(RGB)×900, WXGA+, 89PPI
Pixel Format	RGB Vertical Stripe
Display Area	408.24(W)×255.15(H) mm
Bezel Opening	412.24(W)×256.15(H) mm
Outline Size	428(W)×278(H) ×19(D) mm
Surface	Glare (Haze 0%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	3.6/1.4 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	4 pcs CCFL , 50K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Designed For	Desktop Monitor
Panel Weight	2.12Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
M190PW01 V1 1440x900 TFT LCD Panel Screen Display 30 pins Connector

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping:

Please note: business/working days(NOT including the weekend or the holidays.)

1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.

For faster delivery,please contact us for express details.

2.Please make sure your shipping address is the right one.

Attention:

Please remember that test your product before you install it. If not, it will be difficult to judge the responsibility if the LCD is damaged. so once the LCD have been installed , any damage to man-made causes, we will not take any responsibility.

If there is any problem, please send me a video, which shows the front and back side of the product and the process of testing.

FAQ:

Q: How can I trace my order of M190PW01 V1 ?

A: we will give you tracking number then you can trace your order from website.

Q: Can you give me a discount if I need a large quantity of M190PW01 V1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of M190PW01 V1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of M190PW01 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Shipping and Package :

M190PW01 V1 1440x900 TFT LCD Panel Screen Display 30 Pins Connector 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
