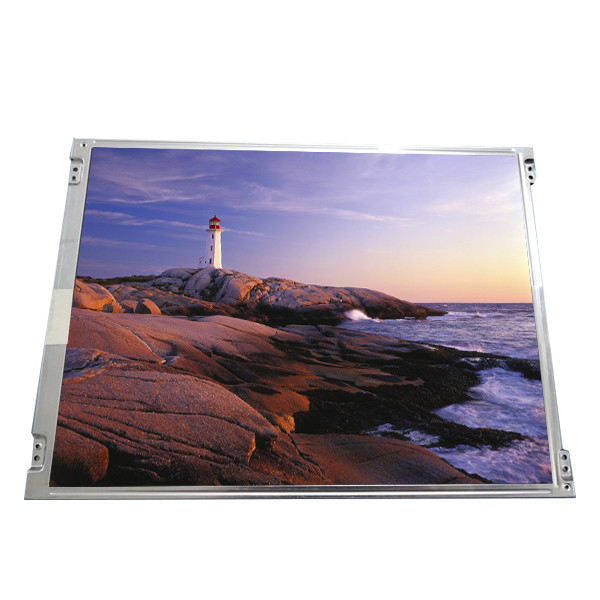

AUO M150EW01 V1 15.0" A Si TFT-LCD Panel RGB 1280x720 WXGA 97PPI
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M150EW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M150EW01 V1 | Resolution: | 1280(RGB)×720, WXGA, 97PPI |
|---|---|---|---|
| Display Size: | 53.46(W)×95.04(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Designed For: | Mobile Phone | Display Colors: | 16.7M 80% NTSC |
| Highlight: | M150EW01 V1 A Si TFT-LCD Panel,15.0" A Si TFT-LCD Panel,AUO A Si TFT-LCD Panel |
||
Product Description
15 inch LCD Display Panel for M150EW01 V1 AUO
Product details :
| AUO LCD SCREEN M150EW01 V1 | |
| Panel Brand | AUO |
| Panel Model | M150EW01 V1 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1280(RGB)×720, WXGA, 97PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 332.16(W)×186.84(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5/3 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 45% NTSC |
| Lamp Type | CCFL |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Desktop Monitor |
| Signal Interface | LVDS (1 ch, 8-bit) , Connector |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| M150EW01 V1 15.0" a-Si TFT-LCD Panel for AUO 1280*720 | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Notice:
1) Do not install the item immediately after received. Pls connect the cable and test the screen function first , If everything OK, then you can install & glue it in your device.
2) If any problems, Please do not hesitate to contact us and providing photo or video for the problem. We will resolve for you soon.
3) We suggest you are familiar or seek a professional for dismantling your device, or otherwise you may damage or break your device. We are not responsible for any damage caused by installation of this accessory.
FAQ:
Q: How long is the warranty of AUO M150EW01 V1 ?
A: 90 days warranty .
Q: How can I trace my order of M150EW01 V1 ?
A: we will give you tracking number then you can trace your order form website.
Q: How do you ship my goods M150EW01 V1 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
If you need any other screens, please contact us.
