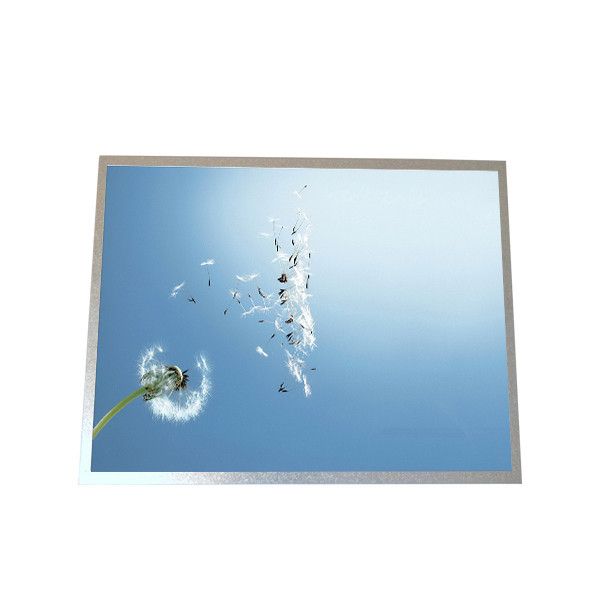

Industrial G150XTT01.0 TFT LCD Module 15.0" PCAP Touch Screen LVDS Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XTT01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XTT01.0 | Resolution: | 1024(RGB)×768, XGA, 85PPI |
|---|---|---|---|
| Display Size: | 304.128(W)×228.096(H) Mm | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| Designed For: | Industrial | Display Colors: | 262K/16.2M |
| High Light: | G150XTT01.0 TFT LCD module,PCAP Touch TFT LCD module,LVDS Connector TFT LCD module |
||
Product Description
AUO 15 inch G150XTN06.C for outdoor highlight
Product details :
| AUO LCD SCREEN G150XTT01.0 | |
| Panel Brand | AUO |
| Panel Model | G150XTT01.0 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M |
| Lamp Type | WLED |
| Frequency | 60Hz |
| Touch Screen | PCAP |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 6/8-bit) Connector |
| Input Voltage | 3.3V (Typ.) |
| G150XTT01.0 15.0 INCH Original lcd screen with touch pad for industrial application | |
