15 Inch 1024*768 Industrial LCD Screen G150XTN03.5 20 Pins LVDS Interface
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XTN03.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XTN03.5 | Resolution: | 1024(RGB)×768, XGA, 85PPI |
|---|---|---|---|
| Display Size: | 304.128(W)×228.096(H) Mm | Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |
| Designed For: | Industrial | Display Colors: | 262K/16.2M 60% NTSC |
| Highlight: | LVDS Interface industrial LCD screen,G150XTN03.5 industrial LCD screen,15 Inch industrial LCD screen |
||
Product Description

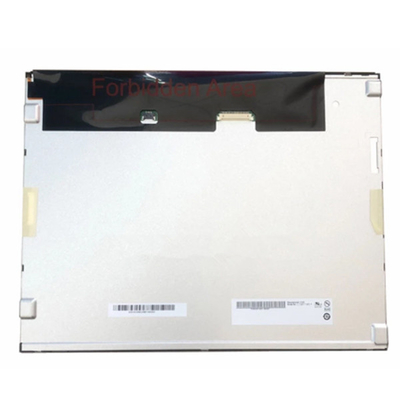

AUO LCD SCREEN G150XTN03.5 Industrial Display
Product details :
| AUO LCD SCREEN G150XTN03.5 | |
| Panel Brand | AUO |
| Panel Model | G150XTN03.5 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 313.55(W)×237.25(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×10(D) mm |
| Surface | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 60% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Used for | Industrial |
| Panel Weight | 1.02Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| 15 inch 1024*768 display G150XTN03.5 lcd screen with 20 pins LVDS | |
