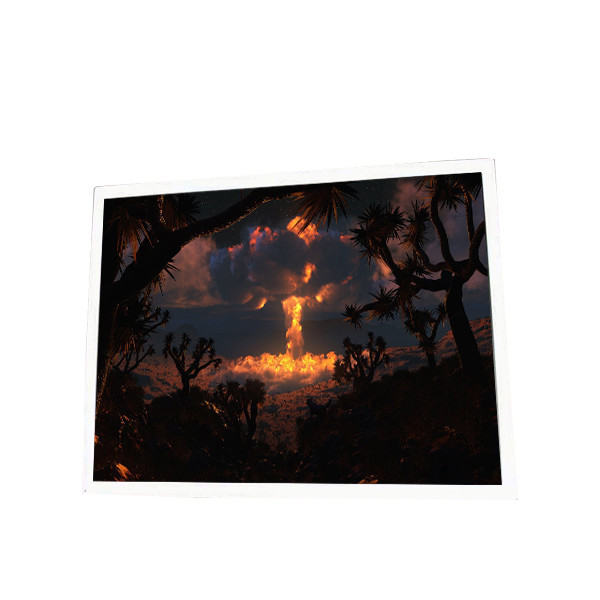

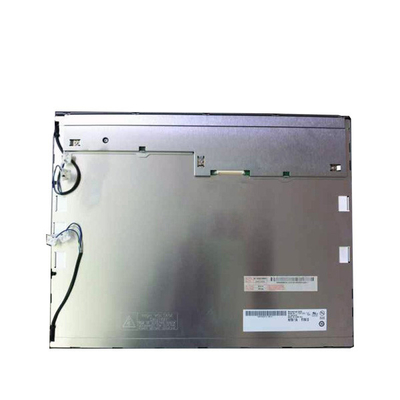

15.0 Inch Industrial LCD Panel LCD Screen G150XG01 V6 1024*768
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | G150XG01 V6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | G150XG01 V6 | Resolution: | 1024(RGB)×768, XGA, 85PPI |
|---|---|---|---|
| Display Size: | 304.128(W)×228.096(H) Mm | Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) |
| Designed For: | Industrial | Display Colors: | 16.2M 65% NTSC |
| High Light: | 15.0 Inch Industrial LCD Panel,G150XG01 V6 Industrial LCD Panel,Antiglare Industrial LCD Panel |
||
Product Description
15.0 Inch Industrial LCD Panel LCD screen G150XG01 V6 1024*768
Product details :
| AUO LCD SCREEN G150XG01 V6 | |
| Panel Brand | AUO |
| Panel Model | G150XG01 V6 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 310.18(W)×234.40(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×11.15(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Display Colors | 16.2M 65% NTSC |
| Lamp Type | WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Designed For | Industrial |
| Touch Screen | Without |
| Panel Weight | 1.10Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 65 °C ; Storage Temp.: -20 ~ 65 °C |
| 15.0 Inch Industrial LCD Panel LCD screen G150XG01 V6 1024*768 | |
