7 Inch 800*480 LCD Display Screen C070VVN03.0 A+Grade For Car GPS Navigation System
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C070VVN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C070VVN03.0 | Resolution: | 800(RGB)×480 WVGA 133PPI |
|---|---|---|---|
| Display Size: | 152.4(W)×91.44(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.) (CR≥10) |
| Designed For: | Automotive Display | Display Colors: | 262K , 60% NTSC |
| High Light: | Car Navigation System LCD Display Screen,800*480 LCD Display Screen,LCD Display Screen C070VVN03.0 |
||
Product Description

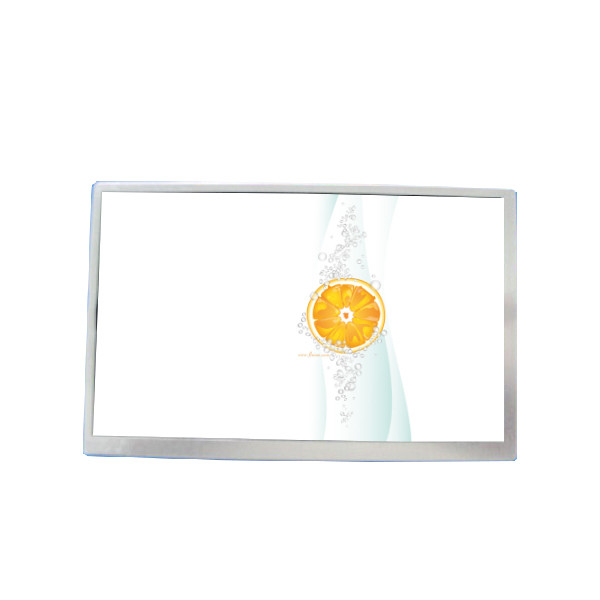

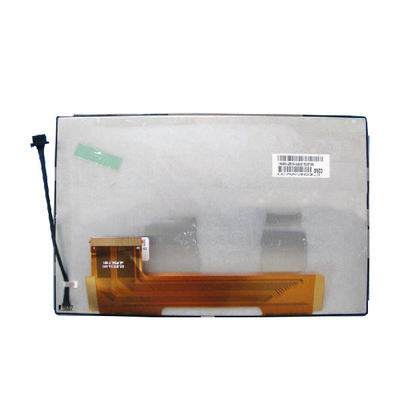

C070VVN03.0 Original A+grade 7 inch 800*480 LCD Display Screen
Product details :
| AUO LCD SCREEN C070VVN03.0 | |
| Panel Brand | AUO |
| Panel Model | C070VVN03.0 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)×480 WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.05(W)×93.7(H) mm |
| Outline Size | 164.55(W)×105.01(H) mm |
| Surface | Antiglare, Antireflection |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (Transmission) |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/25 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 70% NTSC |
| Lamp Type | WLED [6S3P] , 10K hours, no drive |
| Frequency | 60Hz |
| Application | Automotive Display |
| Touch Screen | Without |
| Panel Weight | 159±15g |
| Signal Interface | 50 pins Parallel RGB (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3/12.5/15/-9V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating: -30 ~ 85 °C ; Storage: -40 ~ 95 °C ; Vibration Resistance: 2.9G (28.4 m/s²) |
| C070VVN03.0 Original A+grade 7 inch 800*480 LCD Display Screen for Car GPS Navigation System for AUO | |
