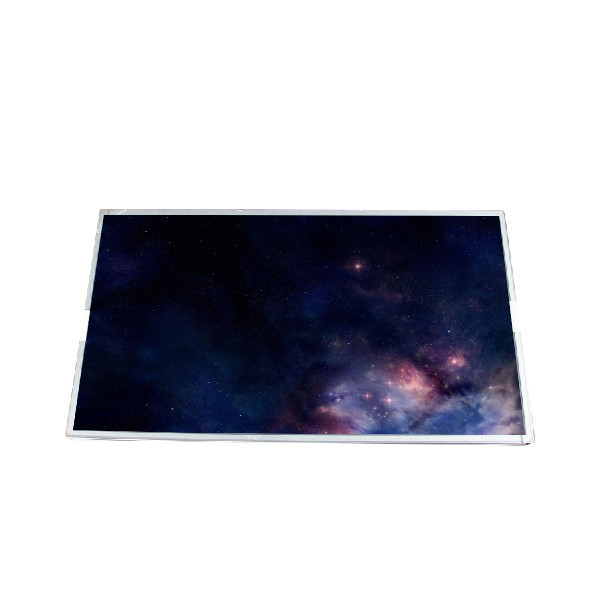

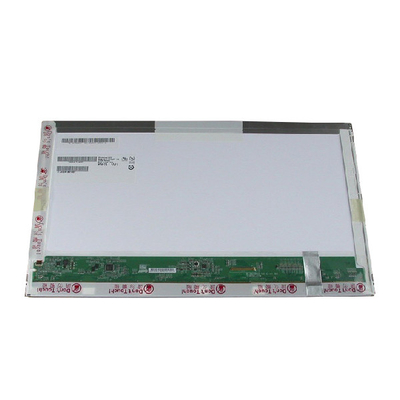

15.6'' LCD B156xw02 v0 laptop lcd screen 1366*768 40pin Right Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B156XW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XW02 V0 | Resolution: | 1366(RGB)×768, WXGA, 100PPI |
|---|---|---|---|
| Display Size: | 344.232(W)×193.536(H) Mm | Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 |
| Designed For: | Laptop | Display Colors: | 262K , 60% NTSC |
| High Light: | N156BGE-L11 notebook laptop display,15.6" Slim notebook laptop display |
||
Product Description
15.6'' LCD B156xw02 v0 laptop lcd screen 1366*768 40pin Right Connector
Product details :
| AUO LCD SCREEN B156XW02 V0 | |
| Panel Brand | AUO |

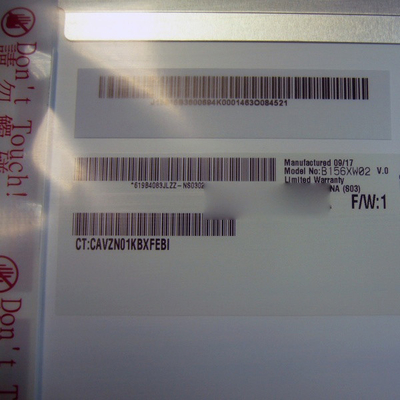

| Panel Model | B156XW02 V0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.93(W)×193.536) mm |
| Outline Size | 359.3(W)×209.5(H)×5.5(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| Brightness | 220 cd/m² (Typ. |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | 9S6P WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 15.6'' LCD B156xw02 v0 laptop lcd screen 1366*768 40pin Right Connector | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
About shipping method:
Due to the continuous impact of the epidemic, the logistics time limit is unstable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer.
Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need specified logistics, please tell us in advance.
before placing orders
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B156XW02 V0 ?
A: Of course!sample order is welcome !
Q: How to make payment of B156XW02 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B156XW02 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
