OPTREX LCD Module Screen 5.2 Inch DMF5005N-AAE-CO 240×64 47PPI Monochrome
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | DMF5005N-AAE-CO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DMF5005N-AAE-CO | Diagonal Size: | 5.2 Inches |
|---|---|---|---|
| Signal Type: | 8-bit Parallel , Pad 20 Pins | Display Area: | 127.16 × 33.88 Mm (H×V) |
| Bezel Opening: | 132.0 × 39.0 Mm (H×V) | Outline Size: | 180 × 65 Mm (H×V×D) |
| Contrast Ratio: | 7:1 (Typ.) (RF) | Designed For: | Industrial |
| High Light: | LCD module screen DMF5005N-AAE-CO,LCD module screen 5.2 Inch,Monochrome LCD module screen |
||
Product Description

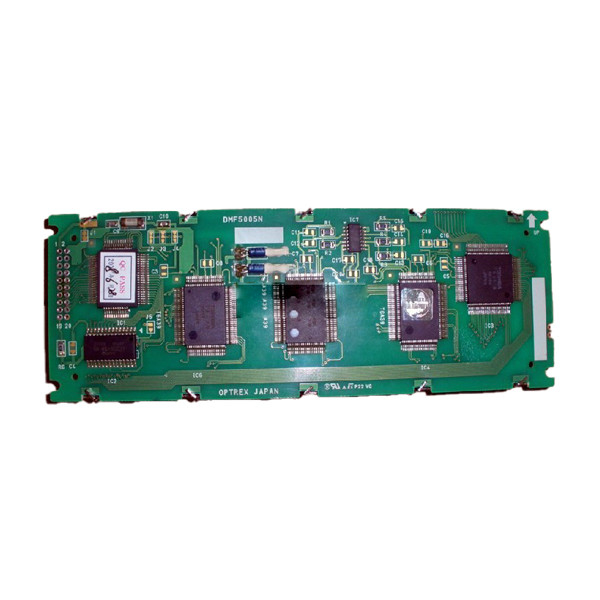

OPTREX lcd module screen 5.2 inch DMF5005N-AAE-CO
Product details :
| OPTREX LCD Screen DMF5005N-AAE-CO | |
| Panel Brand | OPTREX |
| Panel Model | DMF5005N-AAE-CO |
| Panel Size | 5.2 inches |
| Panel Type | LCM, STN-LCD |
| Resolution | 240×64 47PPI |
| Pixel Format | Rectangle |
| Display Area | 127.16 × 33.88 mm (H×V) |
| Bezel Opening | 132.0 × 39.0 mm (H×V) |
| Outline Size | 180 × 65 mm (H×V×D) |
| Contrast Ratio | 7 : 1 (Typ.) [Transmission] |
| Viewing Angle | 35/35/38/35 (Typ.) (CR≥2) |
| Display Mode | STN, Reflective |
| Best View on | 6 o'clock |
| Response Time | 160/160 (Typ.)(Tr/Td) ms |
| Display Colors | Monochrome |
| Lamp Type | no backlight |
| Frequency | 70Hz |
| Touch Screen | Without |
| Panel Weight | 170g (Max.) |
| Designed For | Industrial |
| Signal Interface | 8-bit parallel port, pad, 20 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
| OPTREX lcd module screen 5.2 inch DMF5005N-AAE-CO | |
