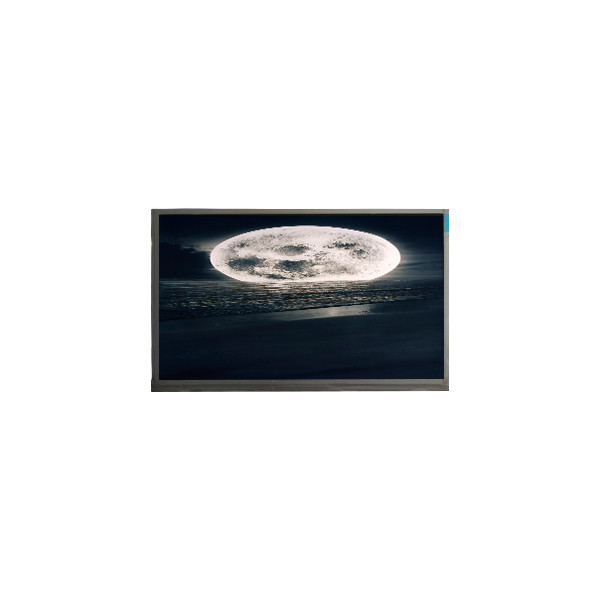

Name: M080AWP9 R5 8.0 Inch TFT LCD Screen 800*480 Lcd Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M080AWP9 R5
Availability: InStock

Brand Name:	IVO
Model Number:	M080AWP9 R5
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M080AWP9 R5

Resolution:

800(RGB)×480, WVGA 115PPI

Active Area:

175.2(W)×105.12(H) Mm

Viewing Angle:

75/75/60/70 (Typ.)(CR≥10)

Designed For:

Automotive Display

Display Colors:

16.7M 70%NTSC

Response:

13 (Typ.)(Tr+Td) Ms

Good View At:

12 O'clock

Color Depth:

16.7M 70%NTSC

Refresh Rate:

60Hz

Supply Ability:

100000 Unit/Units per Month

Highlight:

H335VVN01.0 color lcd screen

TFT IPS color lcd screen

3.4 Inch portrait oled lcd display

Product Description

M080AWP9 R5 8.0 Inch TFT LCD Screen 800*480 Lcd Display3.4 inch 480*854 TFT ips color lcd screen

Product details :

Brand	IVO
Model P/N	M080AWP9 R5
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	175.2(W)×105.12(H) mm
Bezel Opening	177.4(W)×107.52(H) mm
Outline(mm)	187.4 × 118.05× 7.28 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	75/75/60/70 (Typ.)(CR≥10)
Response	13 (Typ.)(Tr+Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 70%NTSC
Backlight	8S3PWLED, 30K hours, No Driver
Mass	200g (Typ.)
Used for	Automotive Display
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 8-bit), 60 pins FPC
Voltage Supply	3.3/22/10.7/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Delivery time is approx:

United States / United Kingdom / Australia 7-14 working days.

Canada 7-25 working days.

France / Spain / Germany may take 7-20 working days.

Eastern Europe may take up to 16-30 working days.

Italy / Brazil / South America may take up to 30-50 working days.

Shipped by DHL Express (Need 3-6 working days to arrive)

This is the normally around ship time.if your country strict customs examination and will cause delay.

FAQ:

Q: Can You declare my order of M080AWP9 R5 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: If I place order now,when will you ship the goods of M080AWP9 R5 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of M080AWP9 R5 via credit card ?

A:Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90days warranty .

Shipping and Package :

M080AWP9 R5 8.0 Inch TFT LCD Screen 800*480 Lcd Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
