Name: 14.0 Inch TFT Module Display eDP Interface NV140FHM-N48 V8.1
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NV140FHM-N48 V8.1
Availability: InStock

Brand Name:	BOE
Model Number:	NV140FHM-N48 V8.1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NV140FHM-N48 V8.1

Resolution:

1920(RGB)×1080, FHD 157PPI

Active Area:

309.31(W)×173.99(H) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Designed For:

Mobile PhoneLaptop

Display Colors:

16.2M 45%NTSC

Supply Ability:

100000 Unit/Units per Month

Highlight:

3.2Inch TFT module display

H335VL01 V0 TFT module display

TFT module display MIPI Interface

Product Description

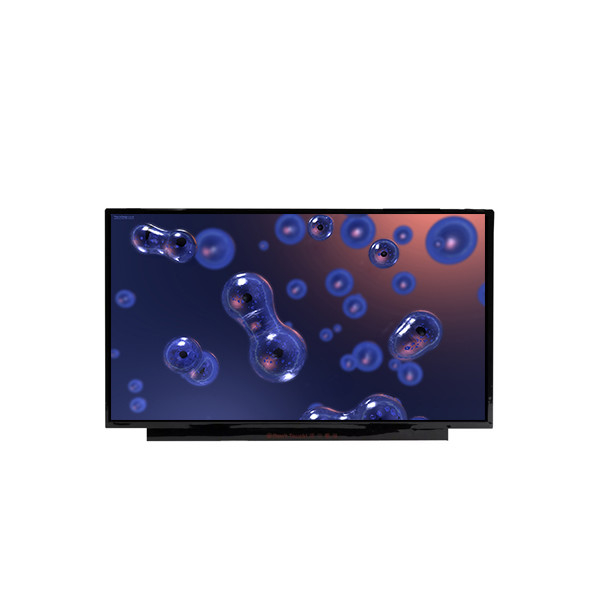

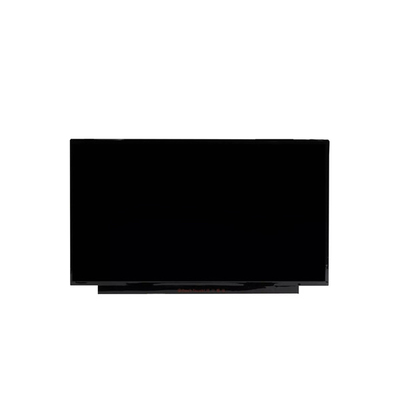

14.0 Inch TFT Module Display eDP Interface NV140FHM-N48 V8.1

Product details :

Brand	BOE
Model P/N	NV140FHM-N48 V8.1
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 157PPI
Pixel Format	RGB Vertical Stripe
Active Area	309.31(W)×173.99(H) mm
Bezel Opening	-
Outline(mm)	315.9 × 197.57× 3 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	30 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	HADS, Normally Black, Transmissive
Color Depth	16.2M 45%NTSC
Backlight	9S4PWLED, 15K hours, With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

FAQ

Q: Can you give me a discount if I need a large quantity of NV140FHM-N48 V8.1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of NV140FHM-N48 V8.1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of NV140FHM-N48 V8.1 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .

Shipping and Package :

14.0 Inch TFT Module Display eDP Interface NV140FHM-N48 V8.1 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
