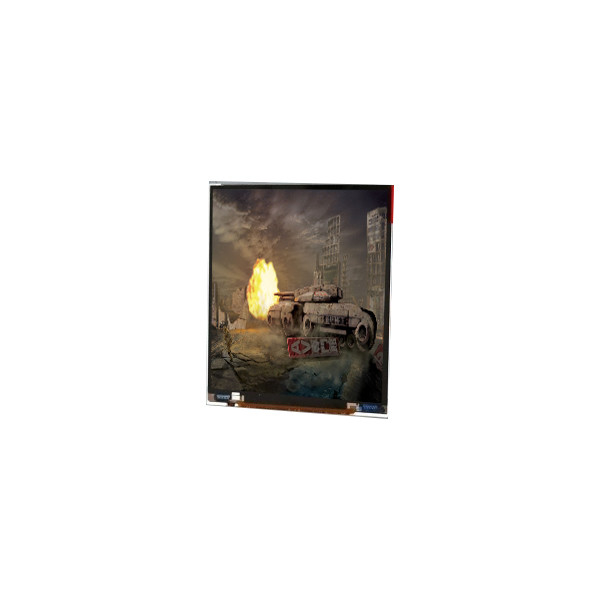

6.3 Inch LPP063A607A-01 TFT Module Display 1080*2280 Resolution lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | JDI |
| Model Number: | LPP063A607A-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LPP063A607A-01 | Resolution: | 1080(RGB)×2280 400PPI |
|---|---|---|---|
| Display Size: | 68.526(W)×144.666(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Designed For: | Mobile Phone | Display Colors: | 16.7M 82%NTSC |
| Operating Mode: | IPS, Normally Black, Transmissive | Plate Thickness: | 0.15+0.15 Mm |
| Support Color: | 16.7M 82%NTSC | Frame Rate: | 120Hz |
| Highlight: | 3.4 Inch TFT module display,H335VL01 V0 TFT module display,MIPI Interface TFT module display |
||
Product Description
6.3 Inch LPP063A607A-01 TFT Module Display 1080*2280 Resolution lcd screen
Product details :
| Brand | JDI |
| Model P/N | LPP063A607A-01 |
| Diagonal Size | 6.3" |
| Panel Type | LTPS TFT-LCD, CELL |
| Resolution | 1080(RGB)×2280 400PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.526(W)×144.666(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.026(H)×148.696(V)×0.3(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 26 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 4.3% (Typ.) |
| Support Color | 16.7M 82%NTSC |
| Light Source | No B/L |
| Weight | 8.22g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | 120Hz |
| Touch Panel | In-Cell Touch |
| D-IC Detail | COG Suggest NT36670A, TD4330 |
| Power Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Operating Temperature: -30 ~ 70 °C; Storage Temperature: -40 ~ 80 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Payment and Shipment:
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW.
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
NOTICE: delivery time should not be considered as an aspect of your feedback.
FAQ:
Q: Can I pay my goods LPP063A607A-01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LPP063A607A-01 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LPP063A607A-01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LPP063A607A-01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
