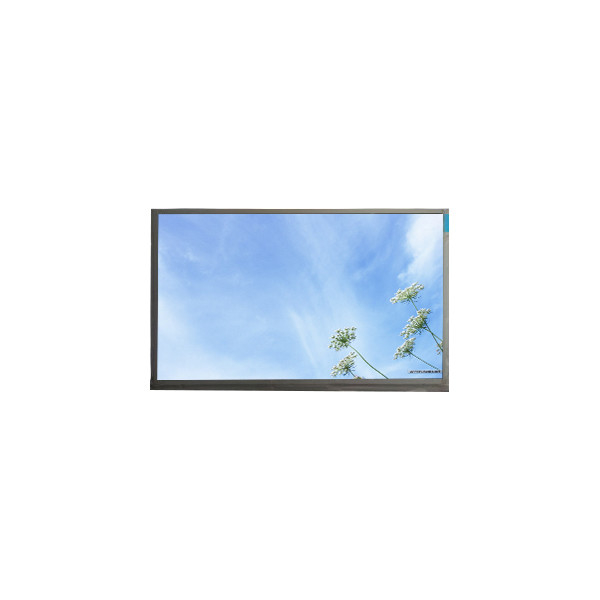

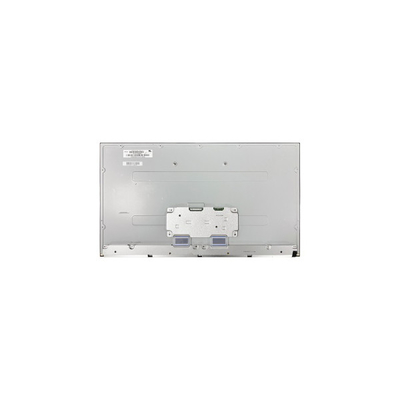

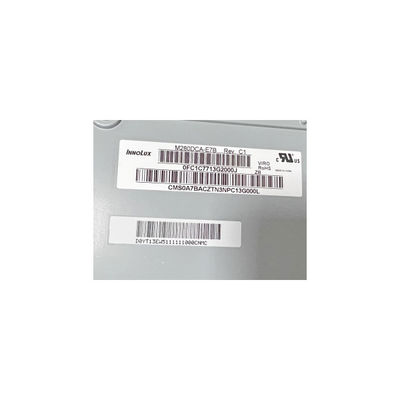

28.0 Inch M280DCA-E7B LCD Panel 4K lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M280DCA-E7B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M280DCA-E7B | Resolution: | 3840(RGB)×2160, UHD 157PPI |
|---|---|---|---|
| Display Size: | 620.928(W)×341.28(H) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Designed For: | Desktop Monitor | Display Colors: | 16.7M 90%DCI-P3 |
| Lamp Type: | WLED, 30K Hours, Without Driver | Frequency: | 144Hz |
| Response Time: | 3.5 (Typ.)(G To G) | Signal Interface: | EDP (8 Lanes), HBR2 (5.4G/lane), 51 Pins Connector |
| Highlight: | H275QW01 V0 A Si TFT LCD Panel,Symmetry A Si TFT LCD Panel,2.8 Inch A Si TFT LCD Panel |
||
Product Description
28.0 Inch M280DCA-E7B LCD Panel 4K lcd screen
Product details :
| Brand | Innolux |
| Model P/N | M280DCA-E7B |
| Diagonal Size | 28.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160, UHD 157PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 620.928(W)×341.28(H) mm |
| Bezel Opening | - |
| Outline Size | 631.93(W)×359.78(H)×16.02(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 3.5 (Typ.)(G to G) |
| Display Colors | 16.7M 90%DCI-P3 |
| Lamp Type | WLED, 30K hours, Without Driver |
| Frequency | 144Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Application | Desktop Monitor |
| Signal Interface | eDP (8 Lanes), HBR2 (5.4G/lane), 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
After-sale Service:
1)warranty for 3 months, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accept the goods .Please contact us and sent photo about product to us as soon as possible .
We will complaint the delivery company.
FAQ:
Q: How can I trace my order of M280DCA-E7B ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods M280DCA-E7B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of M280DCA-E7B ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of M280DCA-E7B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
