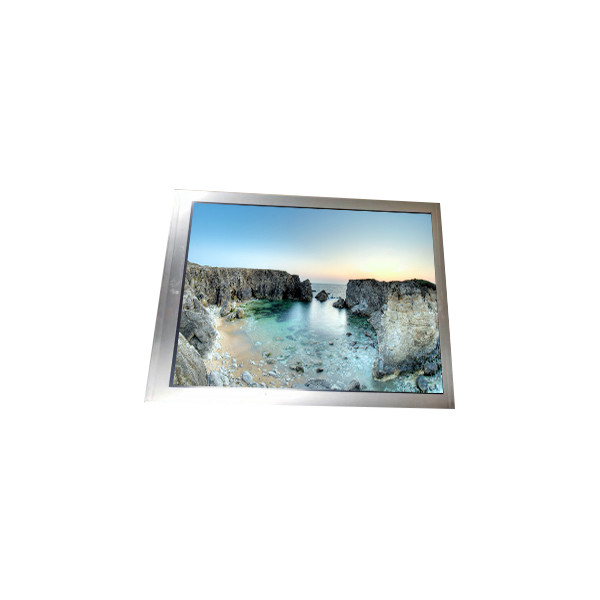

TFT LCD Display 16.0 Inch NE160QDM-NYD Oxide TFT-LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE160QDM-NYD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE160QDM-NYD | Resolution: | 2560(RGB)×1600, WQXGA 188PPI |
|---|---|---|---|
| Display Size: | 344.678(W)×215.424(H) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Designed For: | Laptop /Gaming | Display Colors: | 16.7M 100% SRGB |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Response Time: | 9 (Typ.)(Tr+Td) | Support Color: | 16.7M 100% SRGB |
| Highlight: | Tiny TFT LCD Display 2 Inch,H020HT01 TFT LCD Display,176X220 TFT LCD Display |
||
Product Description
TFT LCD Display 16.0 Inch NE160QDM-NYD Oxide TFT-LCD
Product details :
| Brand | BOE |
| Model P/N | NE160QDM-NYD |
| Diagonal Size | 16.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.678(W)×215.424(H) mm |
| Bezel Opening | - |
| Outline Dim. | 349.68(W)×232.52(H) ×2.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 9 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | 11S6P WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop /Gaming |
| Frame Rate | 240Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
Notice:
1. Before each screen is sent, we pass a 30-minute test.
2. Because the screen is fragile, collisions are inevitable during transportation. Therefore, the buyer is asked to test before receiving the screen.
3. We will not bear any consequences for installation errors. If you are inexperienced, please find someone with installation experience to help.
FAQ:
Q: Can you test the lcd panel NE160QDM-NYD before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order NE160QDM-NYD ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order NE160QDM-NYD ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd NE160QDM-NYD ?
A: 90 days .
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
