M185XW01 V1 AUO TFT LCD Panel 1366X768 LVDS Interface WXGA TFT Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M185XW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M185XW01 V1 | Resolution: | 1366(RGB)×768, WXGA, 84PPI |
|---|---|---|---|
| Display Size: | 409.8(W)×230.4(H) Mm | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Designed For: | Desktop Monitor | Display Colors: | 16.7M 72% NTSC |
| High Light: | G185XW01 V1 AUO TFT LCD Panel,1366X768 WXGA TFT display,LVDS interface WXGA TFT display |
||
Product Description

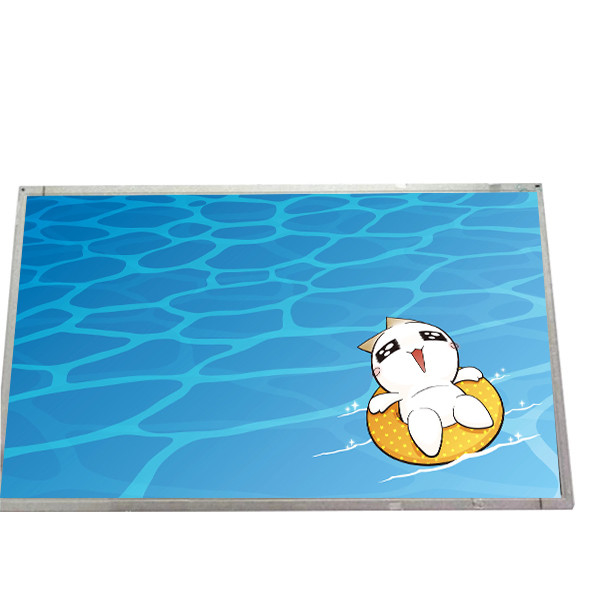

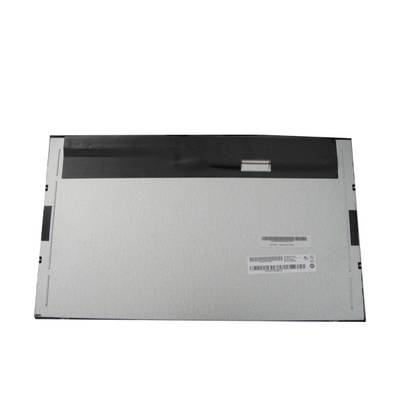

M185XW01 V1 NEW AUO TFT LCD PANEL
Product details :
| AUO LCD SCREEN M185XW01 V1 | |
| Panel Brand | AUO |
| Panel Model | M185XW01 V1 |
| Panel Size | 18.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.4(W)×254.6(H) ×16.5(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 2 pcs CCFL , 50K hours , Without Driver |
| Frequency | 60Hz |
| Designed For | Desktop Monitor |
| Touch Screen | Without |
| Panel Weight | 2.00Kgs (Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| M185XW01 V1 NEW AUO TFT LCD PANEL 1366X768 16:9 LVDS WXGA DISPLAY SCREEN | |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Feedback&Contact us:
We greatly appreciate your POSITIVE FEEDBACK.
Please contact us first if there's anything wrong with the order.
We believe communication can solve the problem.We promise you will do the best for you.
Any help you can contact with our customer service
FAQ
Q: Can you tested the M185XW01 V1 before shipping ?
A: Of course , our lcd panel M185XW01 V1 was Strictly tested before shipping.
Q: How to order AUO M185XW01 V1 ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel M185XW01 V1 I received can't work ?
A: AUO M185XW01 V1 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
All items will be shipped within 48 business hours upon receipt of payment (except Saturday and Sunday).
7 - 15 working days to USA,Russia.Ship by Epacket with track number.
14 - 22 business days to UK Australia,Canada.
18 - 25 business days to Spain,Poland,Norway.
18 - 25 business days to Germay,Filand.Sweden,Malta.
20 - 25 business days to France, Czech. most of Europe.
30 - 40 business days to other countries(Brazil,Argentina,Turkey)
This is the normally around ship time.if your country strict customs examination and will cause delay.
